Sale

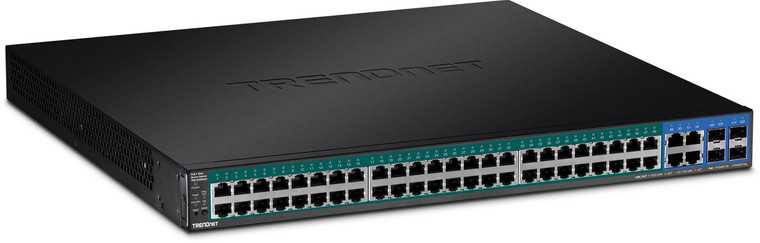

Trendnet TPE-5048WS Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black network
$793.48
$952.18
(You save
$158.70
)
(No reviews yet)
Write a Review
TRENDnet
Trendnet TPE-5048WS Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black network
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Networking | |
| Tagged VLAN | Yes |
| Private VLAN | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table (multicast) | 256 entries |
| Packet forwarding rate (10 Mbps) | 77.4 pps |
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Security algorithms | HTTPS,SNMP,SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Design | |
| Form factor | 1U |
| Colour of product | Black |
| Ventilation fan(s) | 5 |
| LED indicators | Yes |
| Housing material | Linear low-density polyethylene (LLDPE) |
| Certification | CE, FCC |
| Rack mounting | Yes |
| Performance | |
| Noise level | 55 dB |
| Mean time between failures (MTBF) | 338.601 h |
| Power | |
| Power consumption (max) | 963 W |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (typical) | 30 W |
| Power connector | DC-in jack |
| Technical details | |
| Form factor | 1U |
| Colour of product | Black |
| Ventilation fan(s) | 5 |
| Noise level | 55 dB |
| Mean time between failures (MTBF) | 338.601 h |
| Housing material | Linear low-density polyethylene (LLDPE) |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet (PoE) | Yes |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Compatible operating systems | Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 16.9" (430 mm) |
| Height | 1.73" (44 mm) |
| Weight | 14.5 lbs (6.58 kg) |
| Packaging data | |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Quick start guide | Yes |
| Cables included | AC |
