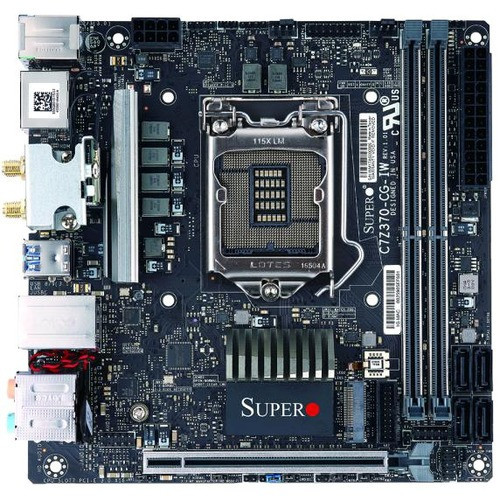

Supermicro C7Z370-CG-IW Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - MBD-C7Z370-CG-IW-O

Supermicro C7Z370-CG-IW Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - MBD-C7Z370-CG-IW-O

Brand: SuperMicro
Part Number #: MBD-C7Z370-CG-IW-O
UPC: 672000000000
$429.53
$515.43
(You save $85.90 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-C7Z370-CG-IW-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: C7Z370-CG-IW
Product Name: C7Z370-CG-IW Desktop Motherboard
Marketing Information:

8th Generation Core™ Processor Based Motherboards

Z370 chipset / Socket H4 Boards

Supermicro's single processor Socket H4 designs feature the Intel® Z370 chipset which support the Intel® 8th Generation Core™ i7/i5/i3 processor family. With outstanding features that include up to 64GB non-ECC fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2, and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and multiple displays. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of multi-tasking, heavy loading applications.


Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:
  • Core i7
  • Core i3
  • Core i5
  • Pentium
  • Celeron

Memory
Number of Memory Slots: 2
Memory Form Factor:
  • UDIMM
  • DIMM

Maximum Memory: 32 GB
Memory Speed Supported:
  • 1.87 GHz
  • 2.67 GHz
  • 2.40 GHz
  • 2.13 GHz
  • 1.60 GHz

Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
  • 10
  • 5
  • 1
  • 0

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
I/O Expansions
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 4
Number of USB 3.1 Ports: 2
HDMI: Yes
DisplayPort: Yes
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 4
Number of Onboard USB 3.0 Ports: 2
Physical Characteristics
Form Factor: Mini ITX
Width: 6.8"
Depth: 6.8"
