Specifications

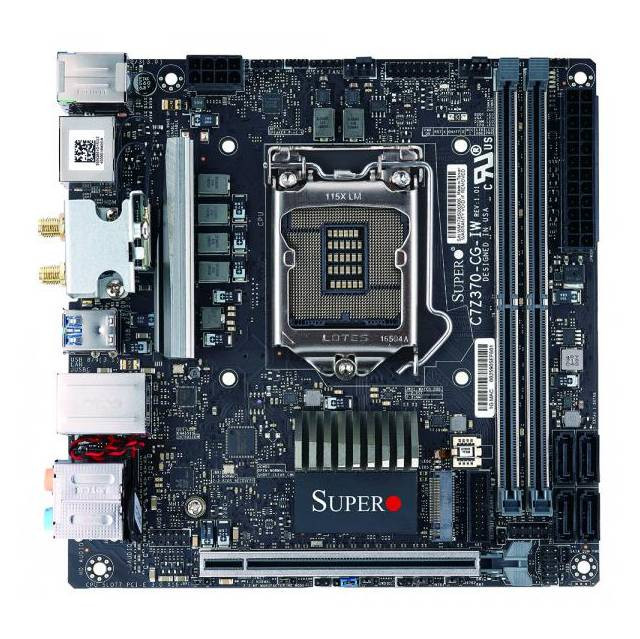

- Mfr Part Number: C7Z370-CG-IW-O
- CPU: LGA1151
- Supports Intel 8th Generation Core i7/ i5/ i3/ Pentium/ Celeron Series Processors
- Support up to 120W TDP
- Chipset: Intel Z270 Express
- Memory: 2x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 32GB
- Slots: 1x PCI-Express 3.0 x16 Slot
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10
- Audio: ALC 1220 7.1-Channel High Definition Audio CODEC
- LAN: Intel PHY i219V Gigabit Ethernet Controller, WiFi 802.11 a/b/g/n/ac + BT 4.2 combo card
- Ports: 2x USB 3.1 Ports (1 Type C, 1 Type A), 6x USB 3.0 Ports (4 Type A, 2 via header), 2x USB 2.0 Ports (via header), 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port
- Form Factor: Mini-ITX, 6.75 x 6.75 inch / 17.15 x 17.15 cm
