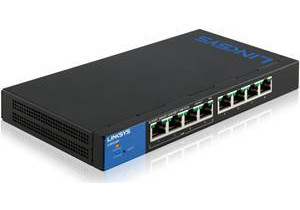

| Management features | |
|---|---|
| Switch type | Managed network switch |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-T,10BASE-T |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Networking | |
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IGMP snooping | Yes |
| Flow control support | Yes |
| DHCP client | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Data transmission | |
| Throughput | 11.9 Mpps |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Number of VLANs | 128 |
| Jumbo frames support | Yes |
| Security | |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
| Management protocols | SNMP, IGMP v1/v2/v3, Telnet, DHCP, HTTP/HTTPS |
| Design | |
| Colour of product | Black, Blue |
| LED indicators | Yes |
| Rack mounting | No |
| Performance | |
| Memory type | DRAM |
| Internal memory | 128 MB |
| Firmware upgradeable | Yes |
| Power | |
| AC input voltage | 100-240 |
| AC input frequency | 50/60 |
| Power consumption (typical) | 10.17 W |
| Input current | 1.5 |
| Technical details | |
| Colour of product | Black, Blue |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 72 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Memory | |
| Memory type | DRAM |
| Internal memory | 128 MB |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 8.27" (210 mm) |
| Depth | 4.09" (104 mm) |
| Height | 0.984" (25 mm) |
| Weight | 19.8 oz (562 g) |
