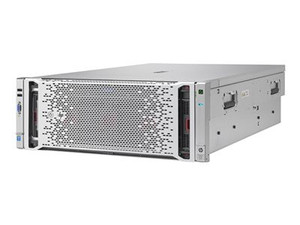

HPE ProLiant DL580 Gen9 High Performance Servers - 793310-B21

HPE ProLiant DL580 Gen9 High Performance Servers - 793310-B21

Brand: HPE
Part Number #: 793310-B21
$16,338.38
$19,606.06
(You save $3,267.68 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Main Specifications

Product Description HPE ProLiant DL580 Gen9 High Performance - Xeon E7-4850V3 2.2 GHz - 128 GB - 0 GB
Type Server - rack-mountable
Height (Rack Units) 4U
Server Scalability 4-way
Processor 4 x Intel Xeon E7-4850V3 / 2.2 GHz ( 2.8 GHz ) ( 14-core )
Processor Main Features Intel Turbo Boost Technology 2
Cache Memory 140 MB L3 cache
Cache Per Processor 35 MB
RAM 128 GB (installed) / 6 TB (max) - DDR4 SDRAM
Storage Controller RAID ( SATA 6Gb/s / SAS 12Gb/s ) - PCIe 2.0 x4 ( Smart Array P830i with 4GB FBWC )
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Graphics Controller Matrox G200
Networking 10 GigE
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Yes
Dimensions (WxDxH) 17.5 in x 29 in x 6.9 in
Weight 70.94 lbs
Manufacturer Warranty 3 years warranty - on-site



Extended Specifications

General
Type Server
Product Form Factor Rack-mountable - 4U
Embedded Security Trusted Platform Module (TPM) Security Chip
Server Scalability 4-way
Hot-Swap Bays Qty 5
Processor / Chipset
CPU Intel Xeon E7-4850V3 / 2.2 GHz
Max Turbo Speed 2.8 GHz
Number of Cores 14-core
CPU Qty 4
Max CPU Qty 4
CPU Upgradability Upgradable
Processor Main Features Intel Turbo Boost Technology 2
Chipset Type Intel C602J
Cache Memory
Installed Size L3 cache - 140 MB
Cache Per Processor 35 MB
RAM
Installed Size 128 GB / 6 TB (max)
Technology DDR4 SDRAM
Form Factor DIMM 288-pin
Configuration Features 8 x 16 GB
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - PCIe 2.0 x4
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name Smart Array P830i with 4GB FBWC
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Buffer Size 4 GB
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Matrox G200
Video Interfaces VGA
Networking
Interface (Bus) Type PCI Express 2.0 x8
Ethernet Ports 2 x 10 Gigabit Ethernet
Ethernet Controller HP FlexFabric 534FLR-SFP+
Data Link Protocol 10 Gigabit Ethernet
Remote Management Controller Integrated Lights-Out 4
Features Wake on LAN (WoL), ACPI support, PXE support
Compliant Standards IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x
Expansion / Connectivity
Bays 5 (total) / 5 (free) x hot-swap 2.5" SFF
Slots 96 (total) / 88 (free) x DIMM 288-pin ¦ 4 (total) / 0 (free) x CPU ¦ 5 (total) / 5 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 4 (total) / 4 (free) x PCIe 3.0 x16 - half-length, full-height ( x8 mode ) ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSD Card
Interfaces 1 x serial ¦ 2 x VGA ( 1 front, 1 rear ) ¦ 1 x HP iLO ¦ 8 x USB 2.0 ( 2 front, 4 rear, 2 internal ) ¦ 2 x LAN (10Gigabit Ethernet) - SFP+
Miscellaneous
Features Administrator password, power-on password, keyboard password, serial port I/O control, USB port control
Compliant Standards ACPI 2.0, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438
Power
Device Type Power supply - hot-plug
Power Redundancy Yes
Installed Qty 4
Max Supported Qty 4
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Power Provided 1200 Watt
Operating System / Software
OS Certified SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - parts and labor - 3 years - on-site - response time: next business day
Dimensions & Weight
Width 17.5 in
Depth 29 in
Height 6.9 in
Weight 70.94 lbs
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 - 90% (non-condensing)
