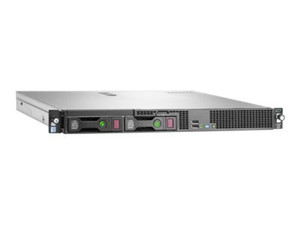

HPE ProLiant DL20 Gen9 Performance Servers - 823559-B21

HPE ProLiant DL20 Gen9 Performance Servers - 823559-B21

HPE
SKU:
823559-B21
$1,280.42
$1,536.51
(You save $256.09 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Main Specifications

Product Description HPE ProLiant DL20 Gen9 Performance - Xeon E3-1240V5 3.5 GHz - 8 GB - 0 GB
Type Server - rack-mountable
Height (Rack Units) 1U
Server Scalability 1-way
Processor 1 x Intel Xeon E3-1240V5 / 3.5 GHz ( 3.9 GHz ) ( Quad-Core )
Processor Socket LGA1151 Socket
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory 8 MB
Cache Per Processor 8 MB
RAM 8 GB (installed) / 64 GB (max) - DDR4 SDRAM - ECC - 2133 MHz - PC4-17000
Storage Controller RAID ( SATA 6Gb/s / SAS 12Gb/s ) - PCIe 3.0 x8 ( HP H240 Smart Host Bus Adapter )
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Networking GigE
Power AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 17.1 in x 15 in x 1.7 in
Manufacturer Warranty 3 years warranty - on-site ( 1st year only )



Extended Specifications

General
Type Server
Product Form Factor Rack-mountable - 1U
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
Server Scalability 1-way
Front Accessible Bays Qty 1
Hot-Swap Bays Qty 4
Processor / Chipset
CPU Intel Xeon E3-1240V5 / 3.5 GHz
Max Turbo Speed 3.9 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket LGA1151 Socket
Chipset Type Intel C232
Cache Memory
Installed Size 8 MB
Cache Per Processor 8 MB
RAM
Installed Size 8 GB / 64 GB (max)
Technology DDR4 SDRAM - ECC
Memory Speed 2133 MHz
Memory Specification Compliance PC4-17000
Form Factor DIMM 288-pin
Features Unbuffered, dual channel memory architecture
Configuration Features 1 x 8 GB
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - PCIe 3.0 x8
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name HP H240 Smart Host Bus Adapter
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5
Monitor
Monitor Type None.
Networking
Interface (Bus) Type PCI Express x2
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller HP NC332i
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller Integrated Lights-Out 4
Features Wake on LAN (WoL), PXE support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion / Connectivity
Bays 1 (total) / 1 (free) x external 5.25" ¦ 4 (total) / 4 (free) x hot-swap 2.5" SFF
Slots 4 (total) / 3 (free) x DIMM 288-pin ¦ 1 (total) / 0 (free) x CPU ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - half-length, low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card ¦ 1 (total) / 1 (free) x FlexibleLOM
Interfaces 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ( 2 in front ) ¦ 3 x USB 3.0 ( 2 rear, 1 internal )
Miscellaneous
Included Accessories HPE Short Friction Rail kit
Compliant Standards ACPI 2.0b, FCC Class A certified, CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, GB 9254, ASHRAE, CNS 13438
Power
Device Type Power supply
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Power Provided 290 Watt
Efficiency 92%
Operating System / Software
OS Certified SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - parts - 3 years ¦ Limited warranty - parts and labor - 1 year - on-site
Dimensions & Weight
Width 17.1 in
Depth 15 in
Height 1.7 in
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90%
