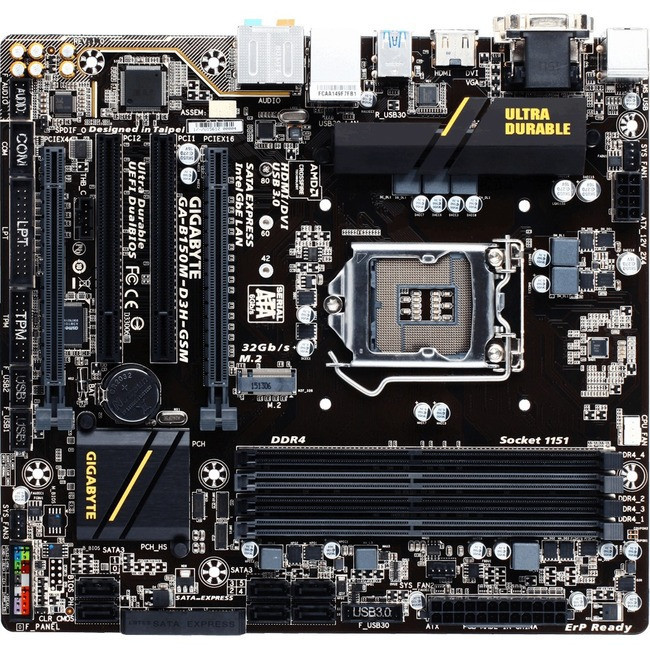

Gigabyte Ultra Durable GA-B150M-D3H GSM Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - GA-B150M-D3H GSM

Gigabyte Ultra Durable GA-B150M-D3H GSM Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - GA-B150M-D3H GSM

Brand: GIGABYTE
Part Number #: GA-B150M-D3H GSM
UPC: 728000000000
$188.00
$225.00
(You save $37.00 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: GA-B150M-D3H GSM
Manufacturer Website Address: http://www.gigabyte.us
Brand Name: Gigabyte
Product Line: Ultra Durable
Product Model: GA-B150M-D3H GSM
Product Name: Ultra Durable GA-B150M-D3H GSM (rev. 1.0) Desktop Motherboard
Marketing Information:

Intel® B150 Chipset

  • Supports 6th Generation Intel® Core™ Processor
  • Dual Channel DDR4, 4 DIMMs
  • 2-Way Graphics with Premium PCIe Lane
  • PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
  • SATA Express Connector for up to 16Gb/s Data Transfer
  • 8-channel HD Audio with High Quality Audio Capacitors
  • Audio Noise Guard with LED Trace Path Lighting
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software Licensing
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ Technology
  • Support Intel® Small Business Advantage

Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron

Memory
Number of Memory Slots: 4
Memory Form Factor:
  • DIMM
  • UDIMM

Maximum Memory: 64 GB
Memory Speed Supported: 2.13 GHz
Memory Technology: DDR4 SDRAM
I/O Controller
Controller Type: Serial ATA/600
Video
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 4
VGA: Yes
HDMI: Yes
DVI: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Number of SATA Express Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.0 Ports: 2
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: Micro ATX
Width: 9.6"
Depth: 8.9"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
  • China RoHS
  • WEEE
  • ErP Ready
