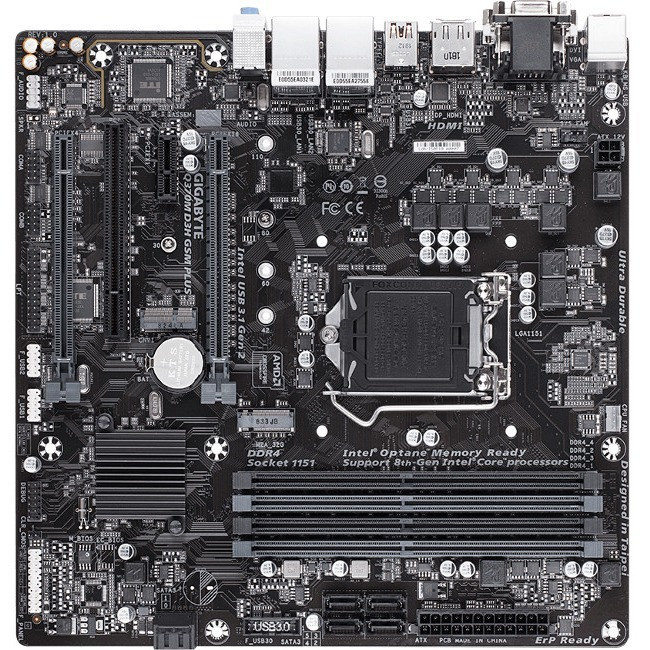

Gigabyte Q370M D3H GSM PLUS Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Q370M D3H GSM PLUS

Gigabyte Q370M D3H GSM PLUS Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Q370M D3H GSM PLUS

Brand: GIGABYTE
Part Number #: Q370M D3H GSM PLUS
UPC: 890000000000
$317.28
$380.74
(You save $63.46 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Specifications
Manufacturer: GIGABYTE Technology, Inc
Manufacturer Part Number: Q370M D3H GSM PLUS
Manufacturer Website Address: http://www.gigabyte.us
Brand Name: Gigabyte
Product Model: Q370M D3H GSM PLUS
Product Name: Q370M D3H GSM PLUS (Rev. 1.0) Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported:
  • Core i3
  • Celeron
  • Pentium
  • Core i5
  • Core i7

Memory
Number of Memory Slots: 4
Memory Form Factor:
  • DIMM
  • UDIMM

Maximum Memory: 64 GB
Memory Speed Supported:
  • 2.67 GHz
  • 2.40 GHz
  • 2.13 GHz

Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 3.1 Ports: 6
VGA: Yes
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 2
Physical Characteristics
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
  • WEEE
  • China RoHS
  • ErP Ready

Country of Origin: China
