Specifications

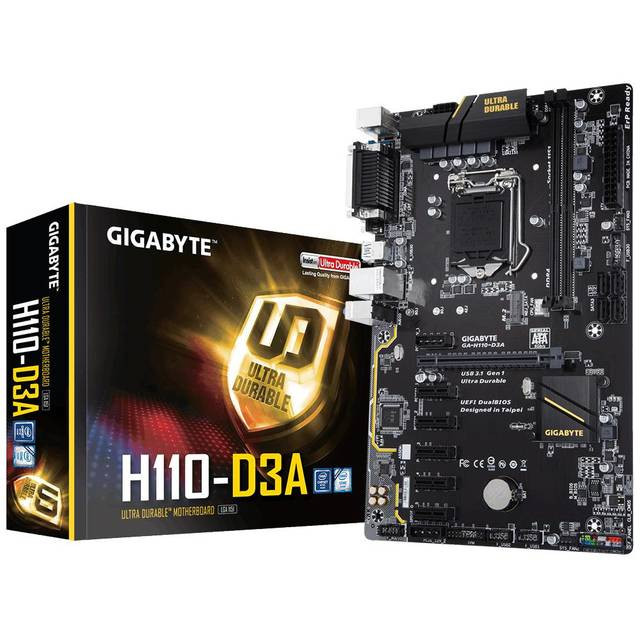

- Mfr Part Number: GA-H110-D3A
- CPU: LGA1151
- Supports for 7th/6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Chipset: Intel H110 Express
- Memory:Â 2x DDR4-2133 DIMM Slots, Dual Channel, ECC, Non-ECC, XMP, Max Capacity of 32GB
- Slots:Â 1x PCI-Express 3.0 x16 Slot, 5x PCI-Express 2.0 x1 Slots
- Storage:
- SATA: 4x SATA3 Ports
- M.2: 1x M.2 Connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
- Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
- LAN: Realtek Gigabit Ethernet Controller
- Ports: 4x USB 3.1 Gen 1 Ports (2 rear, 2 via header), 6x USB 2.0/1.1 Ports (2 rear, 4 via header), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x Parallel Port, 1x Serial Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector, 2x PCIe Power Connectors
- Form Factor: ATX, 30.5 x 19.0cm
