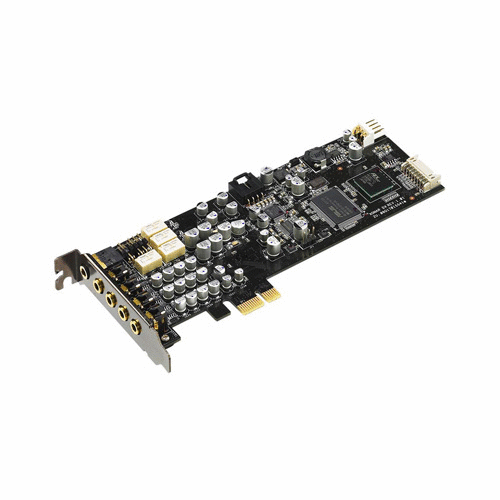

Asus Xonar DX PCI-Express x1 7.1 Channel Sound Card

Asus Xonar DX PCI-Express x1 7.1 Channel Sound Card

Brand: ASUS
Part Number #: XONAR_DX/XD/A / 90-YAA060-1UAN00Z
$188.00
$225.00
(You save $37.00 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Specifications
  • Mfr Part Number: XONAR_DX/XD/A / 90-YAA060-1UAN00Z
  • Audio Performance:
    • Output Signal-to-Noise Ratio (A-Weighted): 116dB for front-out, 112dB for other channels dB
    • Input Signal-to-Noise Ratio (A-Weighted): 112 dB
    • Output THD+N at 1kHz: 0.00056% (-105dB) for Front-out
    • Input THD+N at 1kHz: 0.0004% (-108dB) for Line-in
    • Frequency Response (-3dB, 24-bit/96kHz input): <10Hz to 48KHz
    • Output/Input Full-Scale Voltage: 2 Vrms (5.65 Vp-p)
  • Main Chipset:
    • Audio Processor: ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit)
    • 24-bit D-A Converter of Digital Sources: 1x Cirrus-Logic CS4398 for Front-Out (120dB SNR, Max.192kHz/24bit), 1x Cirrus-Logic CS4362A for other 6 channels (114dB SNR, Max. 192kHz/24bit 24-bit)
    • 24-bit A-D Converter for Analog Inputs: 1x Cirrus-Logic CS5361 (114dB SNR, Max. 192kHz/24bit)
  • I/O Ports:
    • Analog Output Jack: 44.1K/48K/96K/192KHz @ 16/24bit, Dolby Digital, DTS
    • Analog Input Jack: 1x3.50mm mini jack (Shared by Line-In/Mic-In)
    • Other line-level analog input (for CD-IN/TV Tuner): Supports 44.1K/48K/96K/192KHz @16/24bit with very low latency
    • Digital S/PDIF Output: High-bandwidth TOS-Link optical transmitter (shared with Line-In/Mic-In jack) supports 192KHz/24bit
  • Minimum System Requirements:
    • One PCI Express 1.0 (or higher) compatible slot for the audio card
    • One available 4-pin power cable from PC
