Specifications

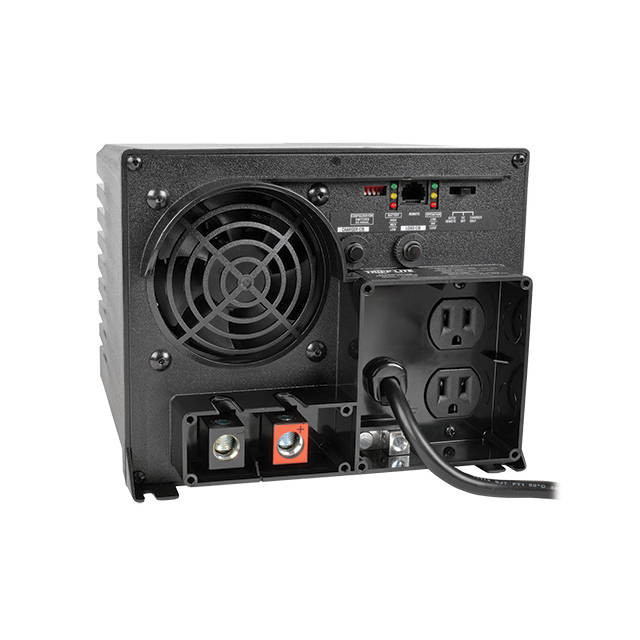

- Mfr Part Number: APS1250
- Features:
- Reliable Power for Mobile, Emergency and Remote Sites
- Meets Normal and Peak Power Demands
- Automatic Transfer Switching
- 3-Stage 30A Battery Charger
- Optional Remote Control Capability
- Front-Panel LEDs
- Rugged Polycarbonate Housing
- Output:
- Nominal Output Voltage(s) Supported: 120V
- Frequency Compatibility: 60 Hz
- Output Receptacles: (2) 5-15R
- Output: 1250 Watts
- Continuous Output Capacity: 1250 Watts
- Peak Output Capacity: 2500 Watts
- Output Voltage Regulation:
- Line Power (AC): Maintains 120V nominal sine wave output from line power source
- Inverter Power (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%)
- Output Frequency Regulation: 60 Hz (+/- 0.3 Hz)
- Overload Protection: Includes 8A input breaker dedicated to the charging system and 12A output breaker for AC output loads
- Input:
- Nominal Input Voltage(s) Supported: 120VAC
- Recommended Electrical Service:
- DC Input: Requires 12VDC input source capable of delivering 125A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 225A minimum battery system fusing is recommended
- AC Input: 120VAC
- Maximum Input Amps / Watts:
- DC Input: Full continuous load - 127A at 12V DC. A
- AC Input: 12 amps at 120VAC with full inverter and charger load (6.3A max charger-only)
- Input Connection Type:
- DC Input: Set of 2 DC bolt-down terminals
- AC Input: NEMA 5-15P input plug
- Voltage Compatibility: 120 VAC, 12VDC
- Battery:
- Expandable Battery Runtime: Runtime is expandable with any number of user supplied wet, gel or SLA batteries
- DC System Voltage: 12 VDC
- Battery Charge: 30A max, 3 step, float for long term maintenance
- Expandable Runtime: Yes
- AC Suppression Joule Rating: 450
- Cooling Method: Multi-speed fan
- Material of construction: Polycarbonate
- Receptacle Color: Black
- Dimensions (WxDxH): 8.75 x 9.00 x 7.00 inch / 22.23 x 22.86 x 17.78 cm
- Weight: 23.2 lbs / 10.5 kg
