SpecificationsManufacturer: Tripp Lite
Manufacturer Part Number: PDU3XMV6G32
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: Metered
Product Model: PDU3XMV6G32

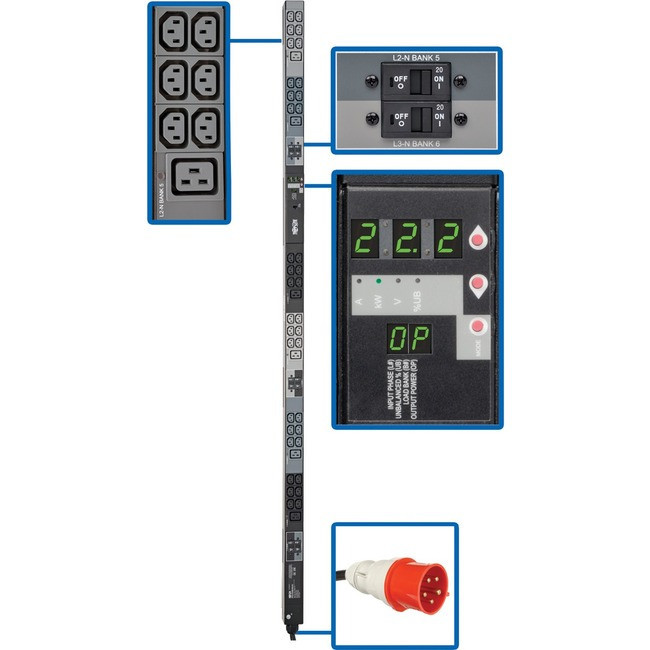

Product Name: Metered PDU3XMV6G32 42 Outlets PDU
Marketing Information: Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of output current, output kW and input voltage via built-in multifunction digital display. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Product Type: PDU
Technical InformationInput Receptacles: IEC 60309 32A Red 3P+N+E
Output Receptacles:
- 6 x IEC 60320 C19
- 36 x IEC 60320 C13
Protection Type: Overload Protection
Power DescriptionInput Voltage Range: 380 V AC - 400 V AC
Output Voltage:
- 200 V AC
- 220 V AC
- 230 V AC
- 240 V AC
Power Rating (Watt): 23 kW
Input Current: 32 A
Physical CharacteristicsMounting Orientation: Vertical
Placement: Rack
Rack Height: 0U
Height: 70"
Width: 2.2"
Depth: 2.5"
Weight (Approximate): 14.29 lb
MiscellaneousEnvironmentally Friendly: Yes
Environmental Certification: RoHS
