SpecificationsManufacturer: Tripp Lite
Manufacturer Part Number: PDU3MV6H50
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Series: Metered
Product Model: PDU3MV6H50

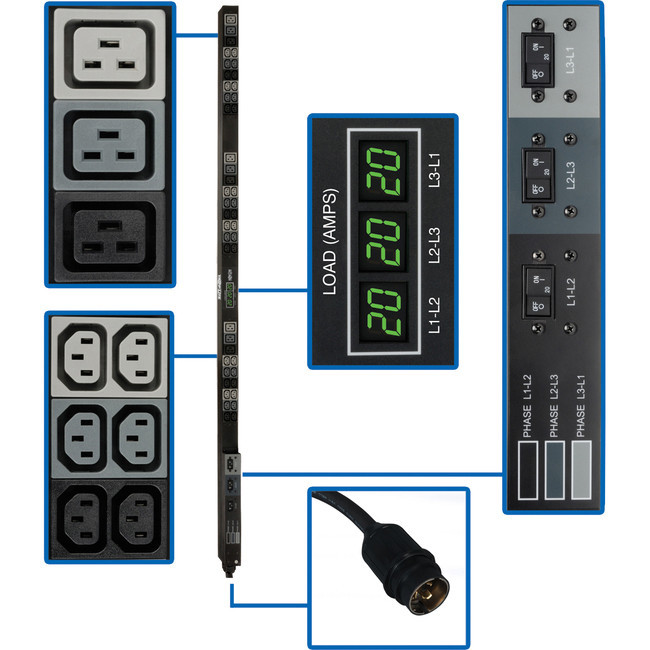

Product Name: Metered PDU3MV6H50 45-Outlets PDU
Marketing Information:
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Product Type: PDU
Technical InformationInput Receptacles: Hubbell CS8365C
Output Receptacles:
- 9 x IEC 60320 C19
- 36 x IEC 60320 C13
Protection Type: Overload Protection
Power DescriptionInput Voltage: 230 V AC
Output Voltage: 208 V AC
Power Rating (Watt): 12.60 kW
Physical CharacteristicsMounting Orientation: Vertical
Placement: Rack
Height: 70"
Width: 2.7"
Depth: 2.2"
Weight (Approximate): 14.50 lb
MiscellaneousEnvironmentally Friendly: Yes
Environmental Certification: RoHS
