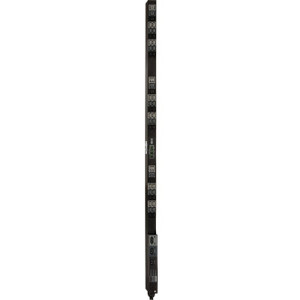

Tripp Lite 3-Phase PDU Monitored 8.6kW 208/120V 36 C13; 6 C19; 3 5-15/20R - PDU3EVN10L2130

Tripp Lite 3-Phase PDU Monitored 8.6kW 208/120V 36 C13; 6 C19; 3 5-15/20R - PDU3EVN10L2130

Brand: Tripp Lite
Part Number #: PDU3EVN10L2130
UPC: 37332209443
$1,404.79
$1,685.75
(You save $280.96 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDU3EVN10L2130
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: PDU3EVN10L2130
Product Name: PDU3EVN10L2130 45-Outlet PDU
Marketing Information: The PDU3EVN10L2130 8.6kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. These advanced remote capabilities can save you money and reduce downtime.

Recommended for your IT or industrial application, the monitored PDU features 45 outlets-36 C13 (208V), 6 C19 (208V) and 3 NEMA 5-15/20R (120V)-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
Product Type: PDU
Technical Information
Input Receptacles: NEMA L21-30P
Output Receptacles:
  • 6 x IEC 60320 C19
  • 36 x IEC 60320 C13
  • 3 x NEMA 5-15/20R

Protection Type: Overload Protection
Power Description
Input Voltage: 230 V AC
Output Voltage:
  • 120 V AC
  • 208 V AC

Power Rating (Watt): 8600 W
Input Current: 24 A
Management
Management: Protocols:
  • IPv4
  • IPv6
  • HTTP
  • HTTPS
  • SMTP
  • SNMPv1
  • SNMPv2
  • SNMPv3
  • telnet
  • SSH
  • FTP
  • DHCP
  • NTP

Physical Characteristics
Mounting Orientation: Vertical
Placement: Rack
Form Factor: Rack-mountable
Rack Height: 0U
Height: 70"
Width: 2.2"
Depth: 2.5"
Weight (Approximate): 13.50 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
TAA Compliant: Yes
