SpecificationsManufacturer: Tripp Lite
Manufacturer Part Number: N858-11M-3X8-MG
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Model: N858-11M-3X8-MG

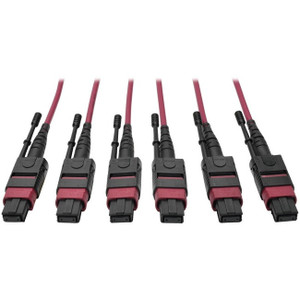

Product Name: N858-11M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable, Magenta, 11 m
Marketing Information: The 11-meter (36-foot) N858-11M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers.With three female MTP/MPO connectors on each end, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames). It's colored magenta for instant identification as an OM4 cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand.The 8-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks, this cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The 5.6-millimeter ruggedized plenum-rated jacket and bend-insensitive fiber are perfect for connecting high-speed network components in ceilings, walls and ducts.
Features
OM4-Rated for 40/100 Gb Ethernet Applications
- Designed to extend high-density connections between network equipment in telecom rooms and data centers
- Recommended for patching between data center MDFs and IDFs
- Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks
- Magenta-colored for identification as an OM4 cable
MTP/MPO Connectors with Push/Pull Tabs
- 8-fiber female connectors 12 times denser than SC connectors
- Push/pull tab connectors easy to install and remove with one hand
- 100% tested for low insertion loss and back reflection
Error-Free Signal Transfer
- 50/125 duplex glass fiber construction
- Plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts
Product Type: Network Cable
Technical InformationCable Type: Fiber Optic
Fiber Optic Mode: Multi-mode
Core/Cladding Diameter: 50/125 µm
Cable Length: 36.10 ft
Connector on First End: 3 x MTP/MPO Female Network
Connector on Second End: 3 x MTP/MPO Female Network
Device Supported: Network Device
Data Transfer Rate: 100 Gbit/s
Physical CharacteristicsColor: Magenta
MiscellaneousEnvironmentally Friendly: Yes
Environmental Certification: RoHS
