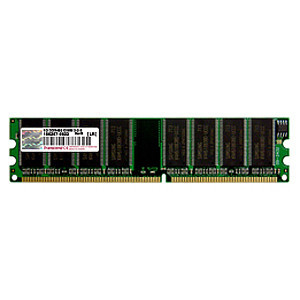

Transcend 1GB DDR SDRAM Memory Module - TS128MLD64V4JL

Transcend 1GB DDR SDRAM Memory Module - TS128MLD64V4JL

Brand: Transcend
Part Number #: TS128MLD64V4JL
UPC: 761000000000
$188.00
$225.00
(You save $37.00 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Specifications
Manufacturer: Transcend Information, Inc
Manufacturer Part Number: TS128MLD64V4JL
Manufacturer Website Address: http://www.transcend-info.com
Brand Name: Transcend
Product Name: 1GB DDR SDRAM Memory Module
Marketing Information:

The TS128MLD64V4JL is a 128M x 64bits Double Data Rate SDRAM high-density for DDR400. The TS128MLD64V4JL consists of 16pcs CMOS 64Mx8 bits Double Data Rate SDRAMs in 60 Ball FBGA packages and a 2048 bits serial EEPROM on a 184-pin printed circuit board. The TS128MLD64V4JL is a Dual In-Line Memory Module and is intended for mounting into 184-pin edge connector sockets. Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.


Product Type: RAM Module
Technical Information
Memory Size: 1 GB
Memory Technology: DDR SDRAM
Memory Speed: 400 MHz
Memory Standard: DDR400/PC3200
Error Checking: Non-ECC
Signal Processing: Unbuffered
Physical Characteristics
Number of Pins: 184-pin
Form Factor: DIMM
Thickness: 50 mil
Width: 0.7"
Length: 5.3"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
