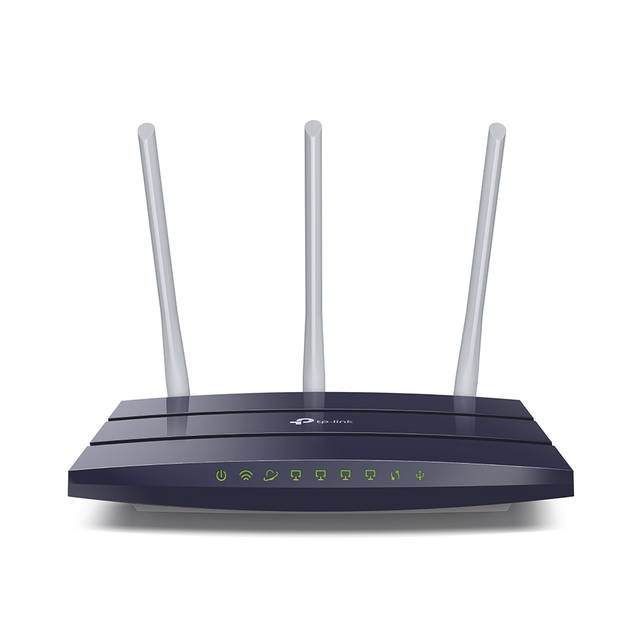

TP-Link TL-WR1043N 450Mbps Wireless N Gigabit Router w/ 3x 5dBi Antennas

Specifications

• Mfr Part Number: TL-WR1043N
• Features:
  • 450Mbps Wireless speed and Gigabit Ethernet ports are ideal for multiple HD video streaming
  • Wireless security encryption easily at a push of WPS Button
  • 3 external 5dBi antennas greatly increase the wireless robustness and stability
• Hardware Features:
  • Interface: 4x 10/100/1000Mbps LAN Ports, 1x 10/100/1000Mbps WAN Port
  • Button: WPS/Reset Button, Power Button, Wi-Fi Button
  • Antenna: 3x 5dBi Omni Directional
  • External Power Supply: 9V / 0.85A
  • Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Dimensions (WxDxH): 8.9 x 5.8 x 1.3 inch / 225.0 x 148.0 x 33.0 mm
• Wireless Features:
  • Frequency: 2.4-2.4835GHz
  • Signal Rate:
    • 11n: Up to 450Mbps(dynamic)
    • 11g: Up to 54Mbps(dynamic)
    • 11b: Up to 11Mbps(dynamic)
  • Reception Sensitivity:
    • 270M: -68dBm@10% PER
    • 130M: -68dBm@10% PER
    • 108M: -68dBm@10% PER
    • 54M: -68dBm@10% PER
    • 11M: -85dBm@8% PER
    • 6M: -88dBm@10% PER
    • 1M: -90dBm@8% PER
  • Transmit Power:
    • CE: <20dBm(2.4GHz)
    • FCC: <30dBm
  • Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
  • Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
• Software Features:
  • Quality of Service: WMM, Bandwidth Control
  • WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/BigPond
  • Management:
    • Access Control
    • Local Management
    • Remote Management
  • DHCP: Server, Client, DHCP Client List, Address Reservation
  • Port Forwarding: Virtual Server,Port Triggering, UPnP, DMZ
  • Dynamic DNS: DynDns, Comexe, NO-IP
  • VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
  • Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
  • Firewall Security:
    • DoS, SPI Firewall
    • IP Address Filter/MAC Address Filter/Domain Filter
    • IP and MAC Address Binding
  • Protocols: Support IPv4 and IPv6
  • Guest Network: 1x 2.4GHz Guest Network
• Others:
  • Certification: CE, FCC, RoHS
  • Package Contents:
    • TL-WR1043N
    • 3 Omni directional antennas
    • Power supply unit
    • Ethernet Cable
    • Quick Installation Guide
  • System Requirements: Windows 10/ 8.18/ 7/ Vista/ XP/ 2000, MAC OS, NetWare, UNIX or Linux.
  • Environment:
    • Operating Temperature: 0°C~40°C (32°F~104°F)
    • Storage Temperature: -40°C~70°C (-40°F~158°F)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing
