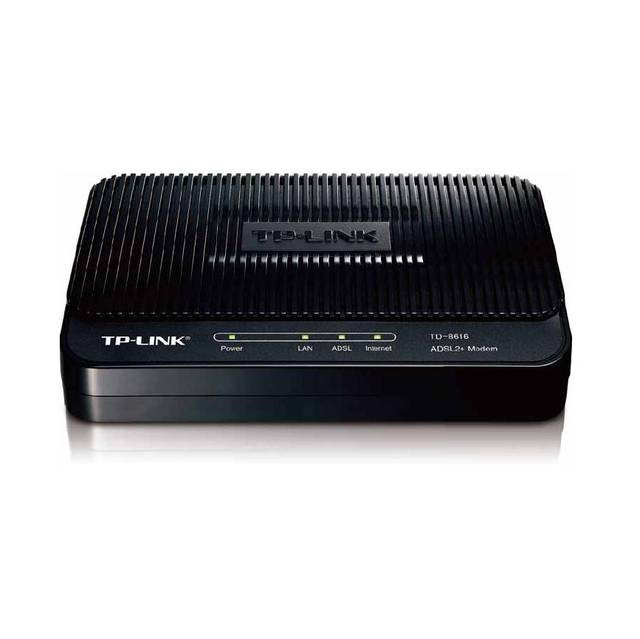

TP-Link TD-8616 ADSL2+ Ethernet Modem Router

TP-Link TD-8616 ADSL2+ Ethernet Modem Router

Brand: TP-Link
Part Number #: TD-8616
$175.00
$210.00
(You save $35.00 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Specifications
  • Mfr Part Number: TD-8616
  • Features:
    • Access a high-speed DSL Internet connection
    • Up to 24Mbps downstream speed
    • Supports Annex M, which can double
    • upstream data rates
    • Firmware upgradeable
  • Ports: 1x RJ45 LAN Port, support 802.3/3u; 1x RJ11 WAN Port
  • Status indicators: LAN, ADSL, Act, Power
  • ADSL Features:
    • Modulation: T1.413,G. 992.1 (G.dmt),G.992.2 (G.lite),ADSL2,ADSL2+, Support Annex A/B/I/J/L/M
    • Data velocity: Max downstream velocity 24Mbps(with ADSL2+ enabled), Supports Annex M
    • Negociation process: For speed, bandwidth and latency, sinchronicity and ADSL activation based on ITU-T G.994.1 (G.hs)
    • Interoperability: Interoperability with DSLAM equipment that uses G. 992.1 (G.DMT), G.992.2 (G.Lite), G.992.3(G.dmt.bis), G.992.5 and G.994.1(G.hs)
    • Transfering distance: Max 6 kilometers
  • ATM Features:
    • Protocolos ATM: UNI 3.1/4.0, MultiProtocol over AAL5(RFC 1483/2684)
    • Service Clases of ATM:
      • Unspecified Bit Rate (UBR)
      • Constant Bit Rate (CBR)
      • Variable Bit Rate with real time(VBR-rt)
      • Variable Bit Rate without real time(VBR-nrt)
    • Virtual Circuits: 2PVCs
  • Management Features:
    • Administrative tools: LAN configuration, ADSL configuration, Autodiagnostics
    • Diagnostic Tools: LAN connectivity, CPE Sincronization, ATM conectivity, PACKET Internetwork Groper (PING)
    • Access control: Password
    • Management Interface: HTTP, Console
    • Software upgrade: Administration and operation software (firmware) upgradable locally by web, tftp and console
  • Package contents: One TD-8616 ADSL2+ Modem; One AC power Adapter for TD-8616 ADSL2+ Modem; Quick Installation Guide; One RJ45 cable; Two RJ11 cables; One ADSL splitter; One Resource CD , including User Guide & Other Helpful Information
  • Dimensions: 5.5 x 3.6 x 1.1 inch / 140.0 x 92.0 x 29.0 mm
