Specifications
- Mfr Part Number: PS-TR2-0500NPCBUS-B
- Features:

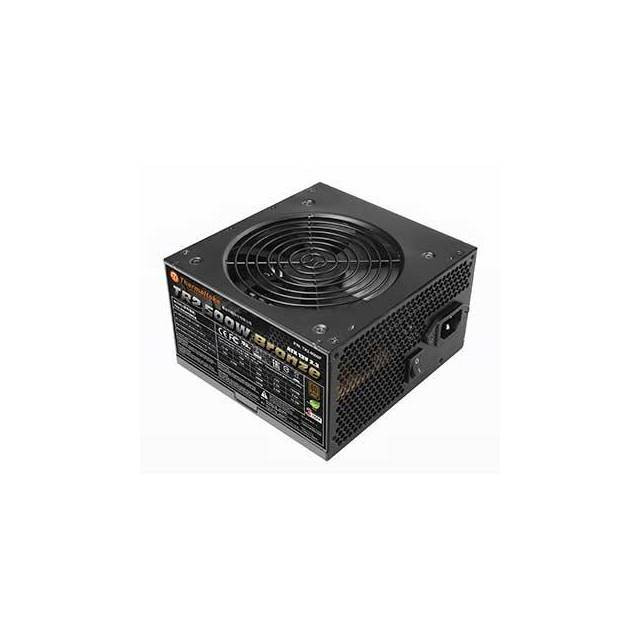

- Thermaltake TR2 500W Bronze
- Ultra Quiet Fan
- Elongated Cables
- 80 PLUS Bronze Certified and Haswell Ready
- High Quality Japanese Main Capacitor
- Massive and Dedicated Single +12V Output
- Maximum Output Power: 500 Watts
- Input:
- Voltage: 100 VAC ~ 240 VAC
- Current: 8A max
- Frequency Range: 47 ~ 63Hz
- Form Factor: Intel ATX 12V 2.3
- Efficiency: 82-88% efficiency @ 20-100% load
- Hold-up Time: 10msec (minimum) @ 80% of full load at 230V AC input
- Power Good Signal: 100 ~ 500 msec
- Power Factor Correction: Active PFC
- Fan: 120mm Fan (1500RPM ±10%)
- MTBF: 100,000 Hours Minimum
- Output: +3.3V @ 18A; +5V @ 16A; +12V @ 38A; -12V @ 0.3A; +5VSB @ 2.5A
- Connectors: 1x 20+4pin Main Connector, 1x 4+4pin ATX 12V Connector, 2x 6+2pin PCI-Express Connectors, 6x SATA Connectors, 4x 4pin Peripheral Connectors, 1x 4pin FDD Adaptor
- Safety Approval: UL/CUL/TUV/CE/FCC and BSMI
- Color: Black
- Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
