Specifications

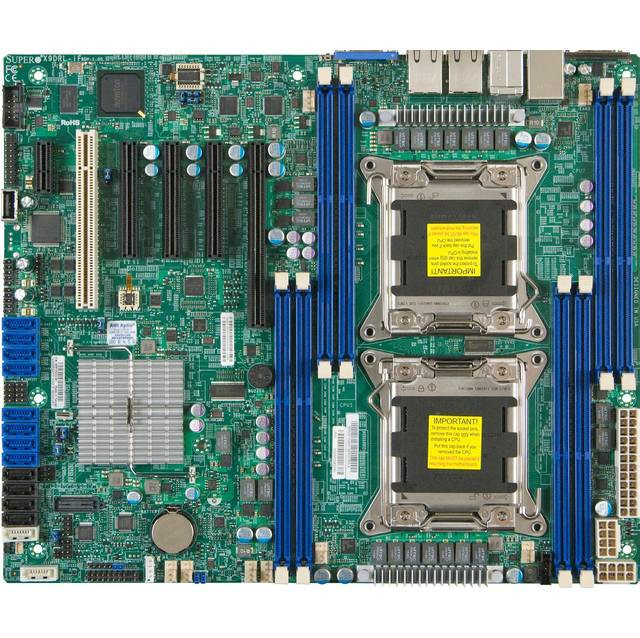

- Mfr Part Number: X9DRL-IF-O
- CPU: Dual LGA2011; Supports Intel Xeon E5-2600 Series Processors; Cache up to 20MB; QPI up to 8 GT/s
- Chipset: Intel C602
- Memory: 8x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 256 GB ECC/REG Memory or up to 64 GB ECC/Unbuffered Memory
- Slots: 3x PCI-Express 3.0 x8 Slot; 1x PCI-Express 2.0 x8 Slot (run at x4); 1x PCI-Express 2.0 x1 Slot; 1x PCI Slot
- SATA: 8x SATA2 Ports, 2x SATA3 Ports; Supports RAID 0, 1, 5, 10
- Video: Integrated G200 (Nuvoton WPCM450 BMC) Graphics Controller
- LAN: Intel 82574L Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
- Ports: 9x USB 2.0 Ports (4 rear, 4 via header, 1 Type A); 1x VGA Port; 2x Serial Ports (1 rear, 1 via header); 2x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: ATX
- Dimensions: 12.0 x 10.0 inch / 30.48 x 25.40 cm
- RoHS Compliant
