SpecificationsManufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X8DTH-IF-B
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: X8DTH-iF

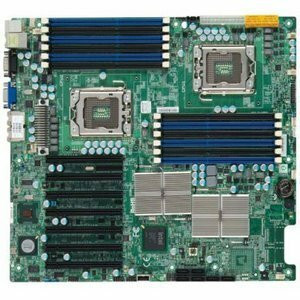

Product Name: X8DTH-iF Server Motherboard
Marketing Information:
This X8DTH-iF Server Board is designed with the utmost attention to detail to provide the highest standards in quality and performance. X8DTH-iF supports the Intel 5500 Series Processor, the first dual-processor platform that supports the Intel QuickPath Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus.
Product Type: Server Motherboard
Processor & ChipsetChipset Manufacturer: Intel
Total Processor Supported: 2
Processor Socket: Socket B LGA-1366
Processor Supported:
- Xeon Dual-Core
- Xeon Quad-core
MemoryNumber of Memory Slots: 12
Maximum Memory: 96 GB
Memory Speed Supported:
Memory Standard:
- DDR3-1333/PC3-10600
- DDR3-1066/PC3-8500
- DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
I/O ControllerController Type: Serial ATA/300
RAID Supported: Yes
RAID Levels:
VideoOnboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200eW
Network & CommunicationGigabit Ethernet: Yes
I/O ExpansionsNumber of Total Expansion Slots: 8
Total Number of PCI Express Slots: 7
Number of PCI Express x8 Slots: 7
Interfaces/PortsTotal Number of USB Ports: 4
Number of USB 2.0 Ports: 4
VGA: Yes
Onboard InterfacesNumber of SATA Interfaces: 6
Total Number of Onboard USB Ports: 4
Physical CharacteristicsForm Factor: Extended ATX
Width: 12"
Depth: 13"
MiscellaneousEnvironmentally Friendly: Yes
Environmental Certification: RoHS
