Specifications

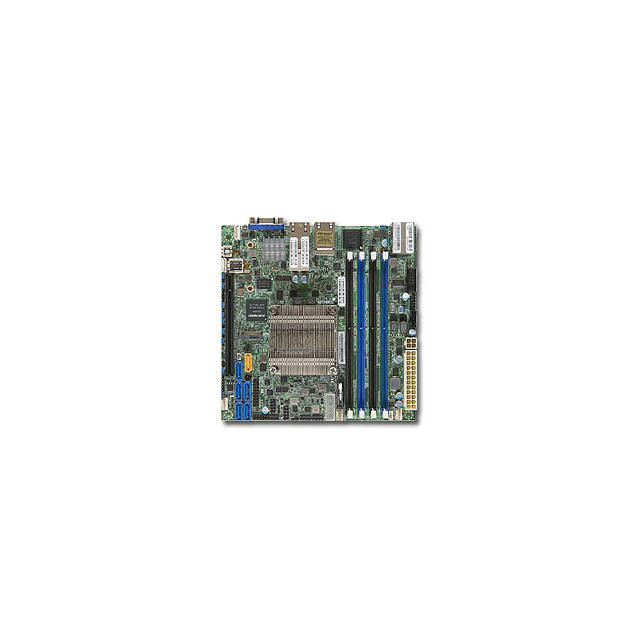

- Mfr Part Number: X10SDV-4C-TLN4F-B
- CPU (Included): Intel Xeon D-1518 Processor; Support up to 35W TDP (Quad-Core)
- Chipset: System on Chip
- Memory: 4x DDR4-2133/ 1866/ 1600MHz DIMM Slots, Support up to 128GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
- Slots: 1x PCI-Express 3.0 x16 Slot; 1x M.2 Slot (M key 2242/2280, PCI-Express 3.0 x4)
- SATA: 6x SATA3 Ports
- Video: ASPEED AST2400 Graphics
- LAN: Intel i350-AM2 Dual-Port Gigabit Ethernet Controller, Dual-Port 10GBase-T Ethernet Controller, 1x Realtek RTL8201N PHY (dedicated IPMI)
- Ports: 2x USB 3.0 Ports, 4x USB 2.0 Ports (via headers), 2x RJ45 10GBase-T Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port, 1x VGA Port
- Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
- Intel Xeon D-1518 is included with this motherboard.
- RoHS Compliant
