Specifications

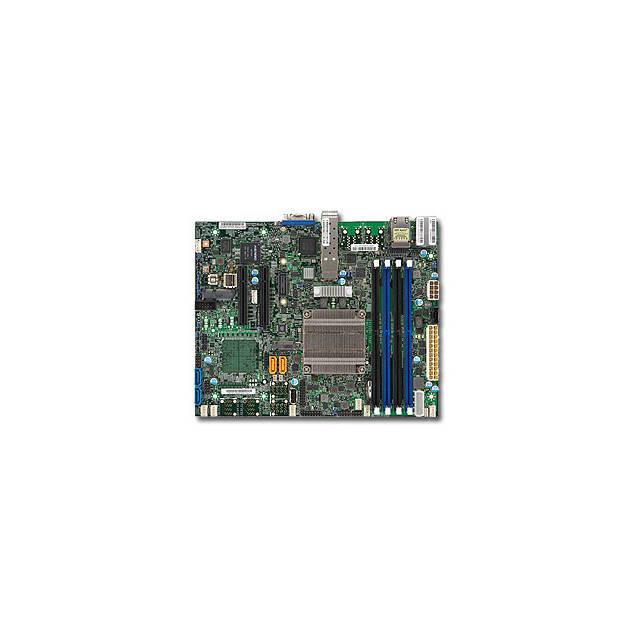

- Mfr Part Number: X10SDV-2C-TP4F-B
- CPU (Included): Intel Pentium D-1508 Processor; Support up to 25W TDP (Dual-Core)
- Chipset: System on Chip
- Memory: 4x DDR4-1866/ 1600MHz DIMM Slots, Support up to 128GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
- Slots: 2x PCI-Express 3.0 x8 Slots; 1x M.2 Slot (M key for SSD, 2242/2280/22110, PCI-Express 3.0 x4), 1x Mini PCI-Express Slot (Support mSATA)
- SATA: 4x SATA3 Ports (via SoC), Supports RAID 0, 1, 5, 10 RSTe
- Video: Aspeed AST2400 Graphics
- LAN: D-1500 SoC Dual Port 10-Gigabit SFP+ Ethernet Controller, Intel i210 Dual Port Gigabit Ethernet Controller
- Ports: 2x USB 3.0 Ports, 5x USB 2.0 Ports (4 via headers, 1 Type A), 1x VGA Port, 2x 10G SFP+ LAN Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: FlexATX, 9.0 x 7.25 inch / 22.86 x 18.42 cm
- Intel Pentium D-1508 is included with this motherboard.
- RoHS Compliant
