Specifications

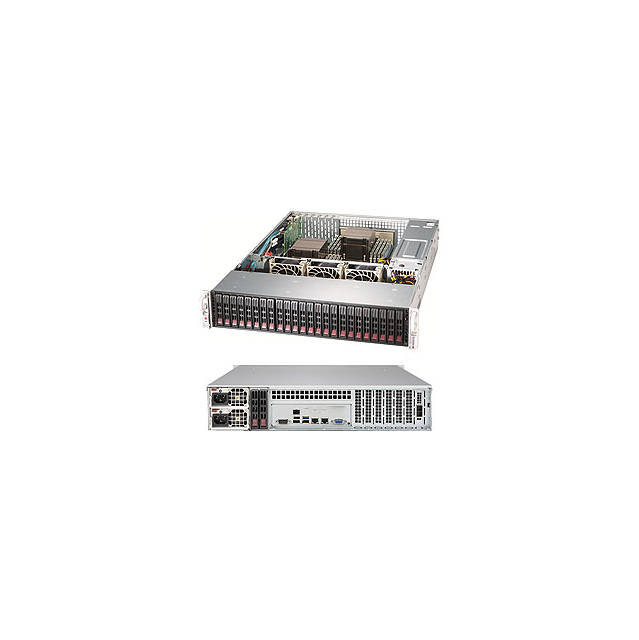

- Mfr Part Number: SSG-2028R-ACR24H
- Motherboard: Super X10DRH-iT
- Processor: Dual LGA2011
- Support Intel Xeon E5-2600 v4/ v3 Family Processor
- Support up to 22 Cores
- Cache up to 55MB
- QPI up to 9.6 GT/s
- Support up to 145W TDP
- Chipset: Intel C612
- Memory: 16x 288pin DDR4-2400/ 2133/ 1866/ 1600 DIMM Slots, Supports up to 2TB ECC/3DS Load Reduced Memory or up to 512GB ECC/REG Memory
- Slots: 1x PCI-Express 3.0 x16 Slot, 6x PCI-Express 3.0 x8 Slots
- SATA: SATA3 Support RAID 0, 1, 5, 10
- SAS: SAS3 via LSI 3108 AOC; HW RAID, Support RAID 0, 1, 5, 6, 10, 50, 60
- Video: ASPEED AST2400 BMC Graphics
- LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
- Drive Bays: 24x 2.5" Hot-swap SAS3/SATA3 HDD Bays
- Backplane: SAS3 12Gbps direct attached storage backplane, w/ 24x SAS3 2.5" drive slots
- Ports: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 1x Type A USB Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 10GBase-T LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: 2U Rackmount
- Power Supply: 920W 80 PLUS Platinum Certified High-efficiency (94%+) AC-DC Redundant Power Supplies w/ PMBus and I2C
- System Cooling: 3x 8cm Hot-swap Redundant PWM Cooling Fans
- Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power Status, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail
- Color: Black
- Dimensions (WxDxH): 17.2 x 24.8 x 3.5 inch / 437.0 x 630.0 x 89.0 mm
- Gross Weight: 61.0 lbs / 27.7 kg
- RoHS Compliant
