Specifications

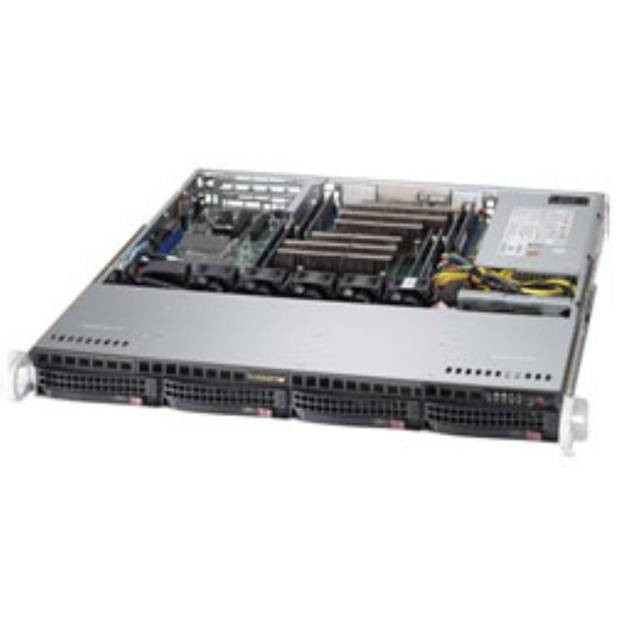

- Mfr Part Number: SYS-6017R-MTLF
- Motherboard: Super X9DRL-EF
- Processor: Dual LGA2011
- Support Intel Xeon E5-2600 Processors
- Cache up to 20MB
- QPI up to 8 GT/s
- Support 60W to 115W TDP
- Chipset: Intel C602J
- Memory: 8x 240pin DDR3-1600/ 1333/ 1066/ 800 DIMM Slots, Supports up to 256GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
- Slots: 1x PCI-Express 3.0 x8 Slot (Full-height, Half-length)
- SATA: 2x SATA3 Ports, Support RAID 0, 1; 4x SATA2 Ports, Support RAID 0, 1, 5, 10
- Video: Matrox G200eW Graphics
- LAN: Intel i210 Gigabit Ethernet Controller; 1x Realtek RTL8201F PHY (dedicated IPMI)
- Drive Bays: 4x 3.5" Hot-swap SATA HDD Trays
- Backplane: 1U SATA HDD Backplane
- Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: 1U Rackmount
- Power Supply: 440W/480W 80 PLUS Platinum Certified AC Power Supply w/ PFC
- System Cooling: 5x 4cm 17,500 RPM PWM Fans
- Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
- Color: Black
- Dimensions (WxDxH): 17.2 x 19.8 x 1.7 inch / 437.0 x 503.0 x 43.0 mm
- Gross Weight: 36.0 lbs / 16.33 kg
- RoHS Compliant
