Specifications

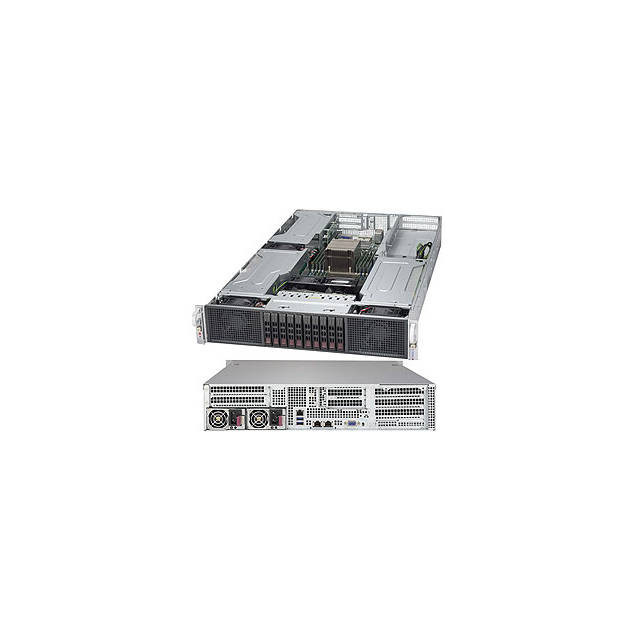

- Mfr Part Number: SYS-2028GR-TR
- Motherboard: Super X10DRG-H
- Processors: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Cache up to 45MB
- QPI up to 9.6 GT/s
- Support up to 145W TDP
- Chipset: Intel C612 Express
- Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
- Slots: 4x PCI-E 3.0 x16 Slots (support GPU/Xeon Phi cards, optional), 1x PCI-Express 3.0 x16 Slot (runs at x8, Low-profile)
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: ASPEED AST2400 BMC Graphics
- LAN: Intel i350 Dual Port Gigabit Ethernet Controller
- Drive Bays: 10x 2.5" Hot-swap Drive Bays
- Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 2x USB 2.0 Ports (via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: 2U Rackmount
- Power Supply: 2000W 80 PLUS Platinum Certified 1U Redundant Power Supply
- System Cooling: 5x 8cm Heavy Duty Fans w/ Optimal Fan Speed Control
- Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power, Hard drive activity, 2x Network Activity, System Overheat/ Fan Fail/ UID
- Color: Black
- Dimensions (WxDxH): 17.2 x 31.0 x 3.5 inch / 437.0 x 787.0 x 89.0 mm
- Weight: 39.5.0 lbs / 17.9 kg
- RoHS Compliant
