Specifications

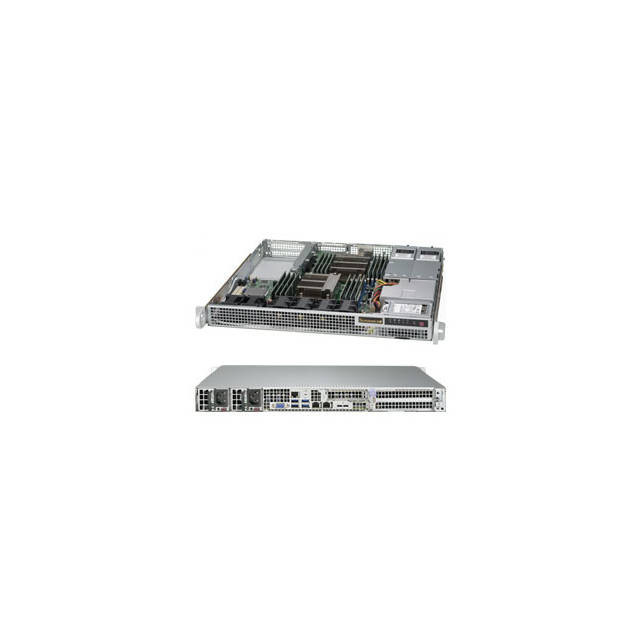

- Mfr Part Number: SYS-1028R-WMRT
- Motherboard: Super X10DRW-ET
- Processors: Dual LGA2011
- Supports Intel Xeon E5-2600 v3 Family Processors
- Supports up to 18 Cores
- Cache up to 45MB
- QPI up to 9.6 GT/s
- Supports up to 145W TDP
- Chipset: Intel C612
- Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
- Slots: 2x PCI-Express 3.0 x16 Slots (Full-height, Half-length)
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: ASPEED AST2400 BMC Graphics
- LAN: Intel X540 Dual Port Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
- Drive Bays: 2x 2.5" Fixed Drive Bays w/ Bracket
- Backplane: SAS/SATA HDD Backplane
- Ports: 2x USB 3.0 Ports (via header), 4x USB 2.0 Ports, 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: 1U Rackmount
- Power Supply: 400W Redundant Power Supply w/ Power Distributor, PMBus 1.2, I2C, and PFC
- System Cooling: 4x 40x56mm 4-pin PWM Fans; 2x Fans for AOC Cooling
- Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat
- Color: N/A
- Dimensions (WxDxH): 17.2 x 16.9 x 1.7 inch / 437.0 x 429.0 x 43.0 mm
- Weight: 16.5 lbs / 7.48 kg
- RoHS Compliant
