Specifications

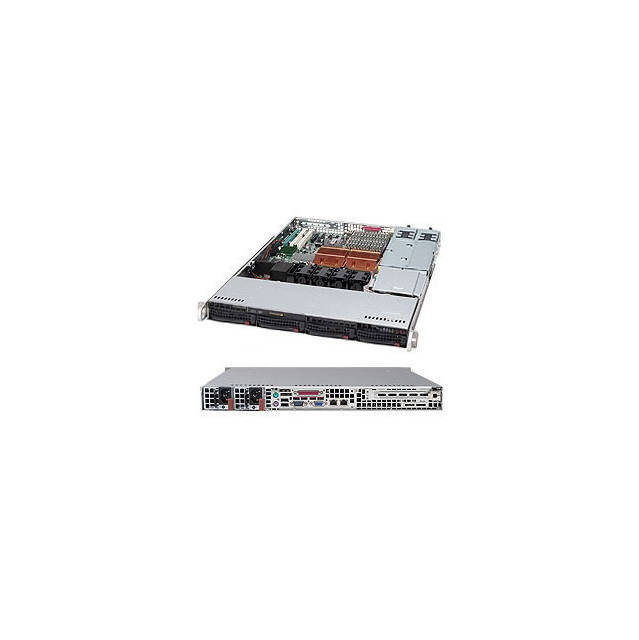

- Mfr Part Number: CSE-815TQ-R500CB
- Case Type: 1U Rackmount
- Color: Black
- M/B Type: Max Motherboard Size - ATX 12.0" x 10.0", E-ATX 12.0" x 13.0"
- Processor Support: Dual, Single Intel/AMD Processors
- Drive Bays: 4x 3.5" SAS/SATA drive bay with SES2; SAS or enterprise SATA HDD only recommended
- Expansion Slots: 1x Full-height, Full-length Expansion Slot (Riser Card Required)
- Backplane: 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
- Cooling System: 3x 4cm Counter-rotating PWM Fans
- Front Panel:
- Buttons: Power On/Off, System Reset
- LEDs: Power Status, Hard Drive Activity, 2x Network Activity, Fan Fail/System Overheat
- Ports: 2x USB & DB9 COM Port Tray
- Power Supply: 500W 80 Platinum Certified Single Output power supply W/PMbus 54.5mm width
- Dimensions (WxDxH): 17.2 x 25.6 x 1.7 inch / 437.0 x 650.0 x 43.0 mm
- Gross Weight: 36.0 lbs / 16.33 kg
- Chassis Only. Does not include CPU, MB, HDD, memory or other parts.
