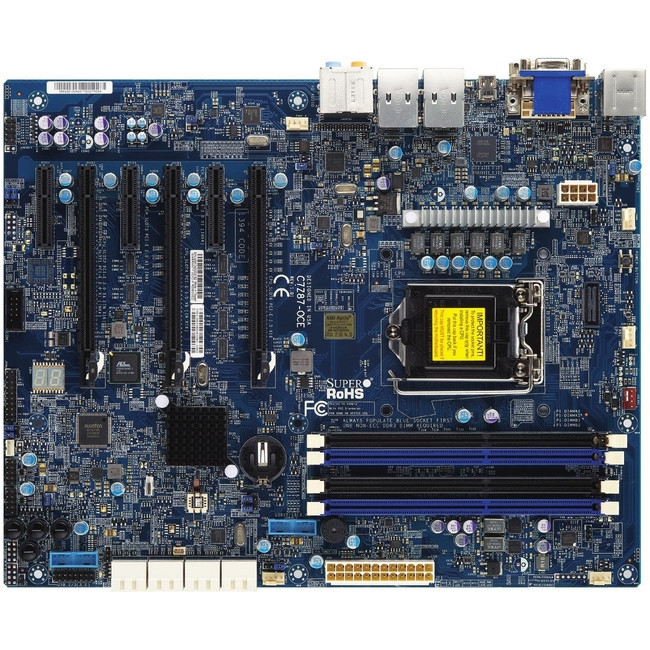

Supermicro C7Z87-OCE Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - MBD-C7Z87-OCE-O

Supermicro C7Z87-OCE Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - MBD-C7Z87-OCE-O

Brand: SuperMicro
Part Number #: MBD-C7Z87-OCE-O
UPC: 672000000000
$546.13
$655.36
(You save $109.23 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Specifications
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-C7Z87-OCE-O
Manufacturer Website Address: http://www.supermicro.com
Brand Name: Supermicro
Product Model: C7Z87-OCE
Product Name: C7Z87-OCE Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H3 LGA-1150
Processor Supported:
  • Core i7
  • Core i5
  • Core i3

Memory
Number of Memory Slots: 4
Memory Form Factor:
  • DIMM
  • UDIMM

Maximum Memory: 32 GB
Memory Speed Supported:
  • 3 GHz (O.C.)
  • 2.80 GHz (O.C.)
  • 2.60 GHz (O.C.)
  • 2.40 GHz (O.C.)
  • 2.20 GHz (O.C.)
  • 2.13 GHz (O.C.)
  • 1.60 GHz
  • 1.33 GHz
  • 1.07 GHz

Memory Standard:
  • DDR3-2800/PC3-22400
  • DDR3-2600/PC3-20800
  • DDR3-2400/PC3-19200
  • DDR3-3000/PC3-24000
  • DDR3-2200/PC3-17600
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-2133/PC3-17000

Memory Technology: DDR3 SDRAM
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 1+0

Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x4 Slots: 3
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 4
S/PDIF: Yes
VGA: Yes
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 2
Thunderbolt: Yes
Onboard Interfaces
Number of SATA Interfaces: 8
Total Number of Onboard USB Ports: 8
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.0 Ports: 4
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"
Miscellaneous
Compatibility: Mid-Tower:
  • CSE-732D4-500B
  • CSE-732D4-865B
  • CSE-732D4-903B
  • CSE-732G-903B
  • CSE-733TQ-500B
  • CSE-733TQ-665B
Tower / 4U Rackmount:
  • CSE-743TQ-1200B-SQ
  • CSE-743TQ-865B-SQ
  • CSE-745TQ-800B
  • CSE-745TQ-920B

Environmentally Friendly: Yes
Environmental Certification: RoHS-6
