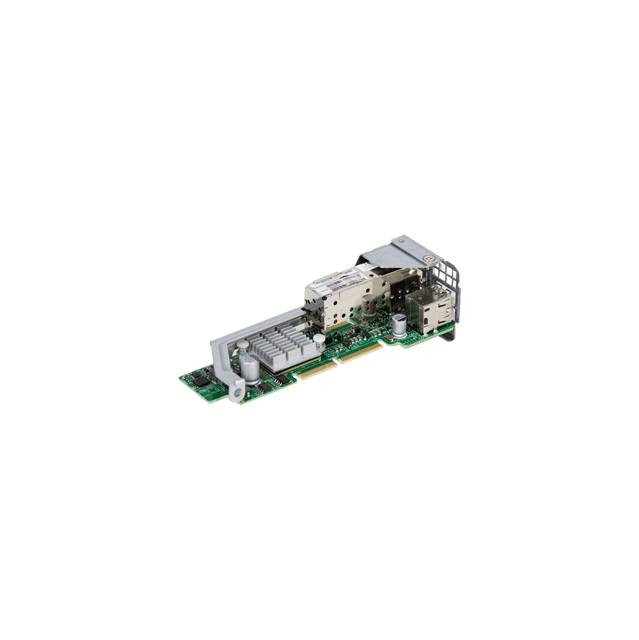

Supermicro AOC-CTG-I2S Dual-Port 10 Gigabit Ethernet Adapter

Specifications

• Mfr Part Number: AOC-CTG-I2S
• Features:
  • Dual SFP+ Connectors
  • MicroLP Form Factor
  • PCI Express 2.0 (up to 5GT/s)
  • Intel QuickData Technology
  • VMDq, Next-Generation VMDq, and
  • PC-SIG SR-IOV for Virtualized Environments
  • Load Balancing on Multiple CPUs
  • iSCSI Remote Boot Support
  • Fibre Channel over Ethernet (FCoE) Support
  • Support for most Network Operating Systems (NOSs)
  • Supports both DAC Twin Axial and LC Fiber-Optic Cables
• General:
  • Intel 82599ES 10GbE controller
  • Compact size microLP form factor
  • Dual SFP+ and dual USB 2.0 ports
  • PCI-E x8 2.0 (5GT/s)
  • Load balancing on multiple CPUs
  • iSCSI remote boot support
  • Fibre Channel over Ethernet (FCoE) Support
  • Intel PROSet Utility for Windows Device Manager
• I/O Features:
  • Intel QuickData Technology - DMA engine that enhances data acceleration and lowers CPU usage
  • Direct Cache Access (DCA) to avoid cache misses
  • MSI-X support to minimize the overhead of interrupts allowing load-balancing between multiple cores/CPUs
  • Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities (IPv4, IPv6)
  • Receive and Transmit Side Scaling for Windows environments and Scalable I/O for Linux environments
• Virtualization Features:
  • Supports virtualization features such as VMDq, Next-gen. VMDq (64 queues per port) and PC-SIG SR-IOV implementation
  • IPv6 Offloading
  • Advanced Packet Filtering
  • VLAN support to allow creation of multiple VLAN segments
• Manageability Features:
  • Preboot eXecution Environment (PXE) support
  • Simple Network Management Protocol (SNMP) and Remote
  • Network Monitoring (RMON) statistics counters
  • iSCSI remote boot
• OS Support:
  • Windows 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012, Vista
  • RedHat EL, SuSe SLES
  • FreeBSD
  • VMWare
• Cables Support:
  • SFP+ direct attached twin axial cables, up to 7 meters
  • LC-LC fiber-optic cables (optional SFP+ transceiver is required)
• Power Consumption: About 8W (typical)
• Supported Platforms:
  • Supermicro MicroCloud and Twin Server
  • Systems with microLP expansion slot
• Dimensions (WxL): 1.54 x 4.85 inch / 3.90 x 12.32 cm (Card PCB w/o end brackets)
• RoHS Compliant
