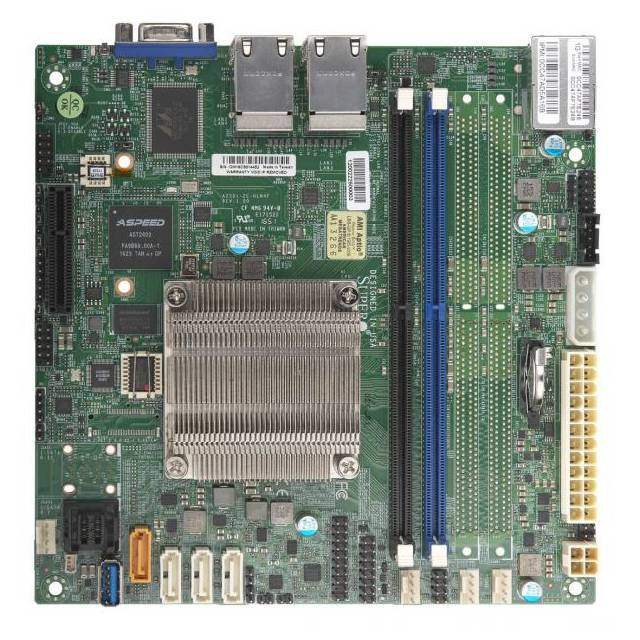

Specifications
- Mfr Part Number: A2SDI-2C-HLN4F-O
- CPU (Included): Intel Atom C3338Â Processor; Supports up to 9W TDP (Dual-Core)
- Chipset: System-on-Chip
- Memory: 2x DDR4-2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Support up to 128GB ECC/REG Memory or up to 32GB ECC/Non-ECC Unbuffered Memory
- Slots: 1x PCI-Express 3.0 x4 Slot
- SATA: 8x SATA3 Ports
- Video: Aspeed AST2400 BMC Graphics
- LAN: Quad LAN with Intel C3000 SoC Gigabit Ethernet Controllers
- Ports: 1x USB 3.0 Port (Type A ), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 4x RJ45 LAN Ports
- Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.02 x 17.02 cm
- Intel Atom C3338 is included with this motherboard.
- RoHS Complaint
