SpecificationsManufacturer: Seagate Technology
Manufacturer Part Number: ST14000NM0048
Manufacturer Website Address: http://www.seagate.com
Brand Name: Seagate
Product Line: Exos
Product Series: X14
Product Model: ST14000NM0048

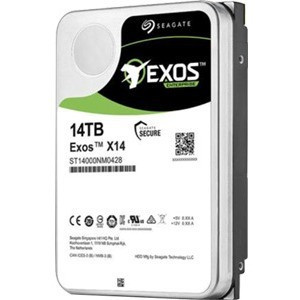

Product Name: Exos X14 ST14000NM0048 Hard Drive
Marketing Information: Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X14 and Exos X14z enterprise hard drives are the highest-capacity hard drives in the fleet.
Maximum Storage Capacity for Highest Rack Space Efficiency - 14TB per drive for 40% more petabytes per rack
- Industry's lowest power and weight for optimum data center TCO
- Highest 14TB hard drive performance with enhanced caching, making it perfect for big data applications
- Hyperscale SATA model tuned for large data transfers
- PowerBalance™ feature optimizes IOPS/Watt
- Helium sealed-drive design with no porosity and uniform density
- Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
- Digital environmental sensors for measuring internal pressure, helping to ensure high reliability, performance, and quality
- Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
- Proven enterprise-class reliability backed by 2.5M-hr MTBF rating
Product Type: Hard Drive
Technical InformationStorage Capacity: 14 TB
Disk Format: 512e/4Kn
Drive PerformanceSpindle Speed (rpm): 7200
Buffer: 256 MB
Network & CommunicationWireless LAN: No
Interfaces/PortsDrive Interface: SAS
Drive Interface Standard: 12Gb/s SAS
Power DescriptionOperating Power Consumption: 10.20 W
Physical CharacteristicsDrive Type: Internal
Form Factor: 3.5"
Height: 1"
Width: 4"
Depth: 5.8"
Weight (Approximate): 1.52 lb
MiscellaneousDevice Supported:
