Specifications
Manufacturer: Seagate Technology
Manufacturer Part Number: ST12000NM0248
Manufacturer Website Address: http://www.seagate.com
Brand Name: Seagate
Product Line: Exos
Product Series: X14
Product Model: ST12000NM0248

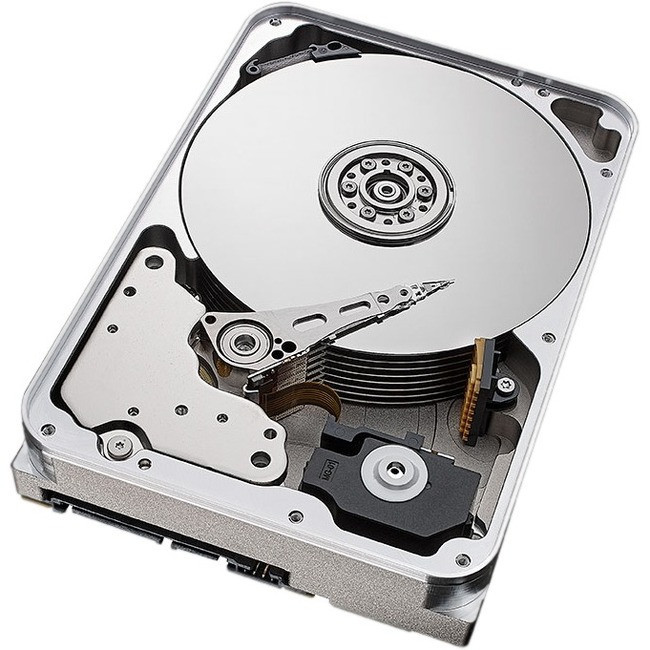

Product Name: Exos X14 ST12000NM0248 Hard Drive
Marketing Information: Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X14 and Exos X14z enterprise hard drives are the highest-capacity hard drives in the fleet.
Maximum Storage Capacity for Highest Rack Space Efficiency
14TB per drive for 40% more petabytes per rack
Industry's lowest power and weight for optimum data center TCO
Highest 14TB hard drive performance with enhanced caching, making it perfect for big data applications
Hyperscale SATA model tuned for large data transfers
PowerBalance™ feature optimizes IOPS/Watt
Helium sealed-drive design with no porosity and uniform density
Superior material and weld-width design for a more robust, hermetically sealed-drive enclosure that protects from helium leaks
Digital environmental sensors for measuring internal pressure, helping to ensure high reliability, performance, and quality
Latest hermetic interconnect technology supporting higher data rate heads and higher pin counts for extreme thermal conditions
Proven enterprise-class reliability backed by 2.5M-hr MTBF rating
Product Type: Hard Drive
Technical Information
Storage Capacity: 12 TB
Disk Format: 512e/4Kn
Drive Performance
Spindle Speed (rpm): 7200
Buffer: 256 MB
Interfaces/Ports
Drive Interface: SATA
Drive Interface Standard: SATA/600
Power Description
Operating Power Consumption: 10 W
Physical Characteristics
Drive Type: Internal
Form Factor: 3.5"
Hot Pluggable: Yes
Height: 1"
Width: 4"
Depth: 5.8"
Weight (Approximate): 1.52 lb
