SpecificationsManufacturer: Sans Digital
Manufacturer Part Number: KT-ES424X12HP
Manufacturer Website Address: http://www.sansdigital.com
Brand Name: Sans Digital
Product Line: EliteSTOR
Product Model: ES424X12HP

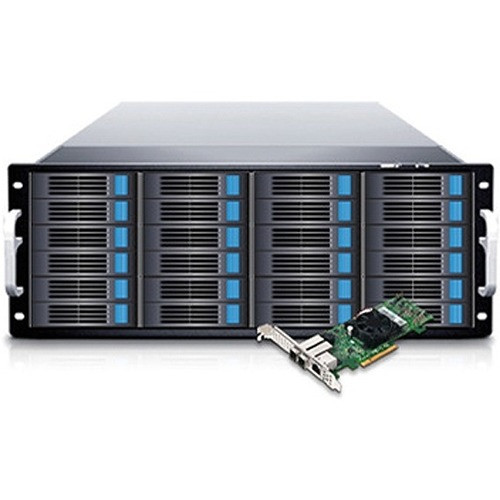

Product Name: EliteSTOR ES424X12HP DAS Array
Marketing Information: The
EliteSTOR ES424X12HP is a complete 4U 12G SAS RAID solution for performance hungry RAID storage solution. Utilizing the latest 12G SAS expander technology, the ES424X12HP provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES424X12HP supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES424X12HP supports up to 24 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 drives drives daisy-chained together. The system comes with a high performance RAID controller card, and the ES424X12HP is capable of delivering over in 3,000MB/s read and write performance, doubling the existing 6G SAS expander bandwidth. Dedicated dual-core RAID engines provides RAID 0, 1, 3, 5, 6, 10, 50, 60 support with enterprises features and performances. System status information is provided by the LED, including hard drives, power supply and cooling fan status, as well as RAID controller's event log and e-mail notification system. All necessary hardware comes standard including RAID controller card, mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES424X12HP is an ideal storage expansion solution for servers or high performance video editing workstations. Support Windows (Vista or up, Server 2003 or up), Apple (OS X 10.4 or up), Linux and BSD. VMware ESX and Microsoft Hyper-V is also supported.
Product Type: DAS Storage System
StorageNumber of Hard Drives Supported: 24
Total Hard Drive Capacity Supported: 96 TB
Number of Solid State Drive Supported: 24
I/O ExpansionsNumber of Total Expansion Bays: 24
Number of 3.5" Bays: 24
ControllersController Type:
RAID Supported: Yes
RAID Levels:
- 0, 1, 3, 5, 6, 10, 30, 50, 60, 100, 1E, JBOD
- 00
- 0
- 1
- 1E
- 10+0
- 10
- 3
- 5
- 6
- 3+0
- 50
- 60
Interfaces/PortsHost Interface: Mini-SAS
Power DescriptionMaximum Power Supply Wattage: 650 W
Physical CharacteristicsHeight: 7"
Width: 19"
Depth: 23"
Form Factor: Rack-mountable
Rack Height: 4U
Weight (Approximate): 54 lb
MiscellaneousEnvironmentally Friendly: Yes
Environmental Certification: RoHS
