Sale

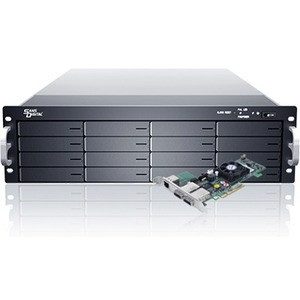

Sans Digital EliteSTOR ES316X6+BHP DAS Array - KT-ES316X6+BHP
$5,157.00
$6,188.40
(You save
$1,031.40
)
(No reviews yet)
Write a Review
Sans Digital
Sans Digital EliteSTOR ES316X6+BHP DAS Array - KT-ES316X6+BHP
Specifications
Manufacturer: Sans Digital
Manufacturer Part Number: KT-ES316X6+BHP
Manufacturer Website Address: http://www.sansdigital.com
Brand Name: Sans Digital
Product Line: EliteSTOR
Product Model: ES316X6+BHP
Product Name: EliteSTOR ES316X6+BHP DAS Array
Marketing Information: The EliteSTOR ES316X6+BHP is a 3U 16 bay 6G RAID storage rackmount for high capacity storage solutions. The ES316X6+BHP is bundled with a high-performance dual core RAID controller card that offloads complicated RAID calculations from the computer or the enclosure to the dedicated RAID engine. High performance can be achieved with a lower cost of ownership compared to RAID embedded subsystems. RAID setup and maintenance can be controlled via built-in Web Browser interfaces, and the unit is supportive of e-mail notications and SNMP trap. Utilizing high bandwidth 2400MB/s mini-SAS (SFF-8088) cabling, the ES316X6+BHP supports SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as the video editing industry. The mini-SAS connection combines sixteen hard drive connections into a single cables, reducing possible points of failures while preserving uninterrupted data transfer. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. System status information such as the hard drive, power supply, and cooling fan status are provided by the LED. All necessary hardware comes standard including the mini-SAS cable, hard drive tray modules and built-in mounting rail. The ES316X6+BHP also support SATA drives, allowing users the option to choose between high performance and high capacity storage solutions.
Product Type: DAS Storage System
Storage
Number of Hard Drives Supported: 16
Total Hard Drive Capacity Supported: 48 TB
I/O Expansions
Number of Total Expansion Bays: 16
Number of 3.5" Bays: 16
Controllers
Controller Type:
RAID Supported: Yes
RAID Levels:
Interfaces/Ports
Host Interface: Mini-SAS
Management & Protocols
Protocols:
Power Description
Maximum Power Supply Wattage: 650 W
Physical Characteristics
Height: 5.3"
Width: 19"
Depth: 23"
Form Factor: Rack-mountable
Rack Height: 3U
Weight (Approximate): 46 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
snippet location product_description
Manufacturer: Sans Digital
Manufacturer Part Number: KT-ES316X6+BHP
Manufacturer Website Address: http://www.sansdigital.com
Brand Name: Sans Digital
Product Line: EliteSTOR
Product Model: ES316X6+BHP
Product Name: EliteSTOR ES316X6+BHP DAS Array
Marketing Information: The EliteSTOR ES316X6+BHP is a 3U 16 bay 6G RAID storage rackmount for high capacity storage solutions. The ES316X6+BHP is bundled with a high-performance dual core RAID controller card that offloads complicated RAID calculations from the computer or the enclosure to the dedicated RAID engine. High performance can be achieved with a lower cost of ownership compared to RAID embedded subsystems. RAID setup and maintenance can be controlled via built-in Web Browser interfaces, and the unit is supportive of e-mail notications and SNMP trap. Utilizing high bandwidth 2400MB/s mini-SAS (SFF-8088) cabling, the ES316X6+BHP supports SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as the video editing industry. The mini-SAS connection combines sixteen hard drive connections into a single cables, reducing possible points of failures while preserving uninterrupted data transfer. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. System status information such as the hard drive, power supply, and cooling fan status are provided by the LED. All necessary hardware comes standard including the mini-SAS cable, hard drive tray modules and built-in mounting rail. The ES316X6+BHP also support SATA drives, allowing users the option to choose between high performance and high capacity storage solutions.
Product Type: DAS Storage System
Storage
Number of Hard Drives Supported: 16
Total Hard Drive Capacity Supported: 48 TB
I/O Expansions
Number of Total Expansion Bays: 16
Number of 3.5" Bays: 16
Controllers
Controller Type:
- 6Gb/s SAS
- Serial ATA/600
RAID Supported: Yes
RAID Levels:
- 0, 1, 3, 5, 6, 10, 30, 50, 60, JBOD
- 1
- 3
- 5
- 6
- 10
- 3+0
- 50
- 60
- JBOD
Interfaces/Ports
Host Interface: Mini-SAS
Management & Protocols
Protocols:
- SNMP
- SMTP
Power Description
Maximum Power Supply Wattage: 650 W
Physical Characteristics
Height: 5.3"
Width: 19"
Depth: 23"
Form Factor: Rack-mountable
Rack Height: 3U
Weight (Approximate): 46 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
