SpecificationsManufacturer: Sans Digital
Manufacturer Part Number: ST-SAN-AR316I6V
Manufacturer Website Address: http://www.sansdigital.com
Brand Name: Sans Digital
Product Line: AccuRAID
Product Model: AR316I6V

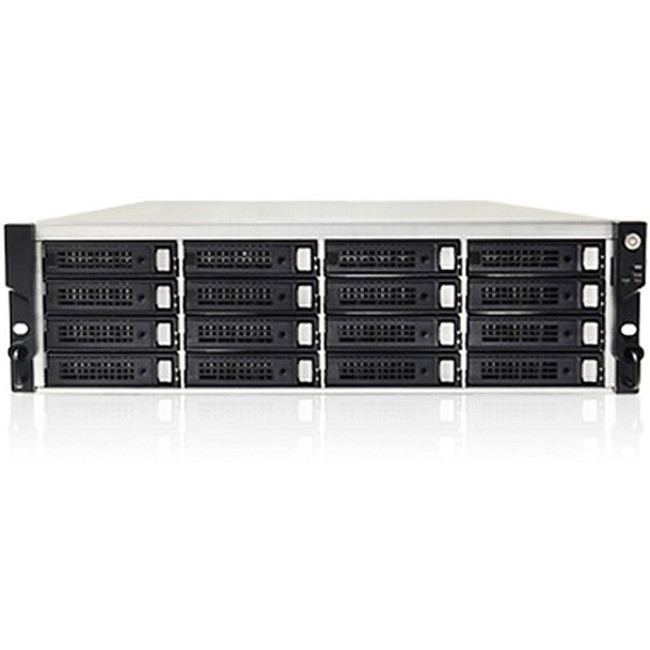

Product Name: AccuRAID AR316I6V - 3U 16 Bay 6xGbE iSCSI to SAS/SATA RAID Rackmount System
Marketing Information: The
AccuRAID AR316I6V is a 3U 16-bay quad channel (6x GbE) iSCSI to SAS/SATA RAID subsystem with single controller. With built-in 6 x 1Gb Ethernet ports supporting independent access, fail-over or load-balancing (802.3ad port trunking, LACP), AR316I6V is capable of composing a high performance SAN environment with a fraction of the cost of Fibre Channel RAID storage systems. Supporting RAID 0, 1, 1+0, 3, 5, 6, 30, 50, 60 and JBOD, with global or dedicated hot spare disks, multiple hard drive failure could be protected without downtime or data loss.
The built-in powerful 64-bit RAID processor provides high performance through-put. The built-in Snapshot feature provides point-in-time copy of saved data without relying on the host software. Management is available via Web and Secure Web (HTTPS), SSH telnet or serial console, with built-in event notification via e-mail or SNMP trap. Redundant power supplies, cooling fans and controllers are part of the modularized design to allow redundancy as well as off-self spare parts to eliminate downtime. To increase the return of investment, AR316I6V supports both SAS and SATA drives, and could be expanded by adding up to 3 additional SAS/SATA JBOD units, providing solutions up to 64-bays or 196TB in total storage capacity. Intended to provide storage solution for IT and vitalization server computing with VMware vSphere or, Microsoft Hyper-V or Citrix with SCSI-3 persistent target support, the AR316I6V is a perfect solution for Storage Area Network needs in IT and other applications.
Product Type: SAN Storage System
StorageNumber of Hard Drives Supported: 16
Total Hard Drive Capacity Supported: 8 TB
Network & CommunicationEthernet Technology: Gigabit Ethernet
I/O ExpansionsNumber of Total Expansion Bays: 16
Number of 3.5" Bays: 16
ControllersNumber of Controllers: 1
Controller Type: iSCSI
RAID Levels:
- 0, 1, 3, 5, 6, 30, 50, 60, 0+1, JBOD
- 1
- 0+1
- 3
- 5
- 6
- 30
- 50
- 60
- JBOD
Interfaces/PortsDrive Interface:
- Serial Attached SCSI (SAS)
- Serial ATA
Physical CharacteristicsHeight: 5.5"
Width: 19"
Depth: 20.5"
Form Factor: Rack-mountable
Rack Height: 3U
Weight (Approximate): 44 lb
MiscellaneousEnvironmentally Friendly: Yes
Environmental Certification: RoHS
