SpecificationsManufacturer: Lenovo Group Limited
Manufacturer Part Number: 4XB7A17062
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Series: PM1645a

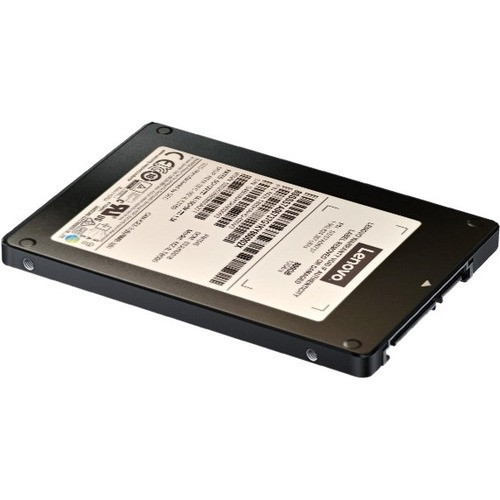

Product Name: ThinkSystem 2.5" PM1645a 800GB Mainstream SAS 12Gb Hot Swap SSD
Marketing Information:
The ThinkSystem PM1645a Mainstream SAS 12Gb solid-state drives (SSDs) in capacities of up to 3.2 TB are next-generation high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers.
The PM1645a SSDs are the follow-on to the PM1645 SSDs and offer improved random write performance.
Product Type: Solid State Drive
Technical InformationStorage Capacity: 800 GB
Drive PerformanceMaximum Read Transfer Rate: 1000 MB/s
Maximum Write Transfer Rate: 1000 MB/s
Endurance (DWPD): 3
Endurance (TBW): 4380 TB
Endurance Type: Mixed Use
Network & CommunicationWireless LAN: No
Interfaces/PortsDrive Interface: SAS
Drive Interface Standard: 12Gb/s SAS
Power DescriptionOperating Power Consumption: 9 W
Physical CharacteristicsDrive Type: Internal
Form Factor: 2.5"
Hot Swappable: Yes
MiscellaneousCompatibility:
Lenovo ThinkSystem Servers:
- T550 (7X09/7X10)
- SR530 (7X07/7X08)
- SR550 (7X03/7X04)
- SR570 (7Y02/7Y03)
- SR590 (7X98/7X99)
- SR630 (7X01/7X02)
- SR650 (7X05/7X06)
- SR670 (7Y36/37/38)
- SR635 (7Y98/7Y99)
- SR655 (7Y00/7Z01)
- SR850 (7X18/7X19)
- SR860 (7X69/7X70)
- SR950 (7X11/12/13)
- SD530 (7X21)
- SN550 (7X16)
- SN850 (7X15)
Device Supported: Server
Environmentally Friendly: Yes
Environmental Certification: RoHS
