Sale

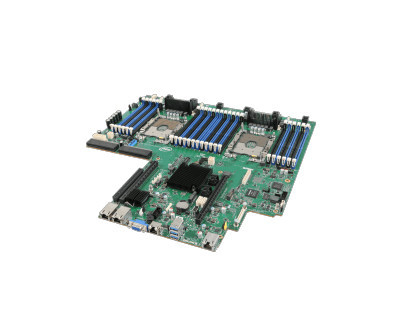

Intel S2600WFT Socket P server/workstation motherboard
$1,180.23
$1,475.28
(You save
$295.05
)
(No reviews yet)
Write a Review
Intel
Intel S2600WFT Socket P server/workstation motherboard
| Design | |
|---|---|
| Component for | Server |
| Chassis type | Rack |
| Product family | Dual-socket server board |
| Product series | Intel® Server Board S2600WF Family |
| Product codename | Wolf Pass |
| Processor | |
| Processor manufacturer | Intel |
| Number of processors supported | 2 |
| Processor socket | Socket P |
| Number of QPI links | 2 |
| CPU configuration (max) | 2 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Number of DIMM slots | 24 |
| ECC | Yes |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Supported LRDIMM clock speeds | 2133,2400,2666 MHz |
| Storage controllers | |
| RAID support | Yes |
| Hard drive interface | Serial ATA |
| RAID levels | 0, 1, 10 |
| Back panel I/O ports | |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| Motherboard ARK ID | 89015 |
| Motherboard chipset | Intel C624 |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Rack-Friendly board | Yes |
| Integrated systems available | Yes |
| Integrated BMC with IPMI | Yes |
| InfiniBand | No |
| Embedded options available | No |
| Processor special features | |
| Intel Rapid Storage Technology enterprise | Yes |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Server Management Software | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Quiet System Technology (QST) | No |
| Intel Quick Resume Technology | No |
| Intel Intelligent Power Node Manager | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel Flex Memory Access | Yes |
| Intel Fast Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Advanced Management Technology | Yes |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Graphics | |
| On-board graphics adapter | No |
| Weight & dimensions | |
| Width | 16.7" (424.2 mm) |
| Depth | 17" (431.8 mm) |
| Technical details | |
| USB ports quantity | 8 |
| Thermal Design Power (TDP) | 205 W |
| Product type | 12 |
| Packaging content | Box includes (1) Intel Server Board S2600WFT w/two 10Gb ports |
| Maximum number of PCI Express lanes | 100 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Halogen free | No |
| Form factor | Custom 16.7" x 17" |
| ECC supported by processor | Yes |
| Total number of SATA connectors | 10 |
| Status | Launched |
