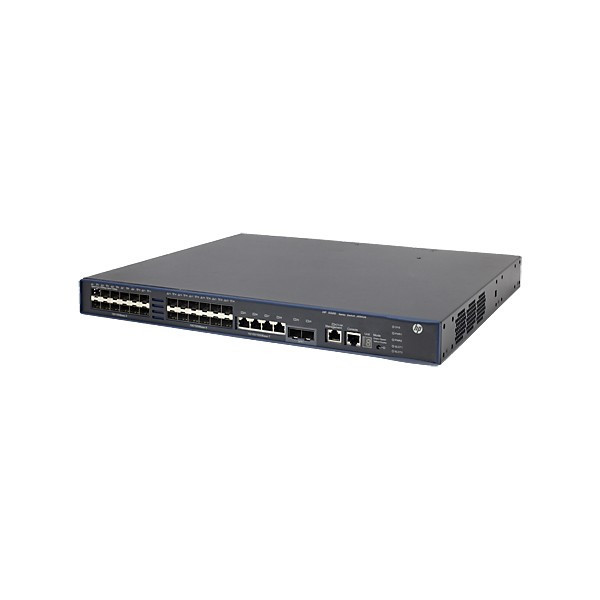

HP 5500-24G-SFP HI Switch with 2 Interface Slots Switch 24 Ports

HP 5500-24G-SFP HI Switch with 2 Interface Slots Switch 24 Ports

Brand: HP
Part Number #: JG543A
$2,788.46
$3,346.15
(You save $557.69 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
General Specifications

Brief Overview

  • 24 ports
  • Gigabit Etherne
  • 32000 entries
  • Rack-mountable 1U
  • Device Link Detection Protocol

The HP 5500 HI Switch Series comprises Gigabit Ethernet switches that deliver outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks. The switches can also be used in the core layer of SMB networks. With Intelligent Resilient Fabric (IRF) support and available dual power supplies, the HP 5500 HI Switch Series can deliver the highest levels of resiliency and manageability. In addition, the PoE+ models provide up to 1440 W of PoE+ power with the dual power supply configuration. Designed with two fixed 10GbE ports and extension module flexibility, these switches can provide up to six 10GbE uplink or 70 GbE ports. With complete IPv4/IPv6, OpenFlow, and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks.

Manufacturer HP
Manufacturer JG543A
Manufacturer UPC # 0887111430472
Product Description HP 5500-24G-SFP HI Switch with 2 Interface Slots - Switch - managed - 24 x Gigabit SFP + 4 x 10/100/1000 + 2 x 10 Gigabit SFP+ - rack-mountable
Device Type Switch - 24 ports - managed - stackable
Enclosure Type Rack-mountable 1U
Interfaces Gigabit Ethernet
Ports 24 x Gigabit SFP + 4 x 10/100/1000 + 2 x 10 Gigabit SFP+
Performance Routing/switching capacity : $292 ($292 (176 Gbp))s
Throughput : 130.9 Mpps
Capacity IPv4 routing table entries : 12000
IPv6 routing table entries : 6000
MAC Address Table Size 32000 entries
Jumbo Frame Support Yes
Routing Protocol OSPF, RIP, IS-IS, BGP, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, RIPng, MLD, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH-2, CLI
Features Layer 2 switching, DHCP support, ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Device Link Detection Protocol (DLDP) support, Rapid Ring Protection Protocol (RRPP) support, Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Endpoint Admission Defense (EAD), STP Root Guard, Unicast Reverse Path Forwarding (URPF), IPv4 support, LLDP support, dual firmware images, port isolation, packet storm protection, Generic Attribute Registration Protocol (GARP), Intelligent Resilient Framework Technology (IRF), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ad, IEEE 802.1ab (LLDP)
Approximate Dimensions (WxDxH) 17.3 in x 14.2 in x 1.7 in
Approximate Weight 16.5 lbs
Manufacturer Warranty Limited lifetime warranty
