General Specifications

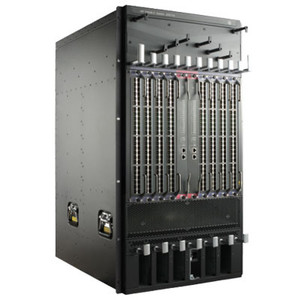

| Product Description | HP 10512 Switch Chassis - switch - rack-mountable |
| Device Type | Switch |
| Enclosure Type | Rack-mountable 18U |
| Dimensions (WxDxH) | 17.3 in x 26 in x 31.4 in |
| Weight | 166.2 lbs |
| General |
| Device Type | Switch | | Enclosure Type | Rack-mountable - 18U | |
| Expansion / Connectivity |
| Expansion Slots | 2 MPU ¦ 16 (total) / 16 (free) x expansion slot | | Installed Modules Qty (Max) | 18 (max) | |
| Power |
| Power Device | Internal power supply | | Installed Qty | 0 (installed) / 6 (max) | |
| Miscellaneous |
| Rack Mounting Kit | Included | | Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60825-1, FDA, CAN/CSA C22.2 No. 60950-1, EN 60825-2 | |
| Dimensions & Weight |
| Width | 17.3 in | | Depth | 26 in | | Height | 31.4 in | | Weight | 166.2 lbs | |
| Environmental Parameters |
| Min Operating Temperature | 32 °F | | Max Operating Temperature | 113 °F | | Humidity Range Operating | 10 - 95% (non-condensing) | | Min Storage Temperature | -40 °F | | Max Storage Temperature | 158 °F | | Humidity Range Storage | 5 - 95% (non-condensing) | |
Brief Overview
- Rack-mountable 18U
- 16 (free) x expansion slot
- Internal power supply
- Resiliency and high availability
- Virtual private network (VPN)
The HP 10512 Switch Chassis - Jc748a is a cutting edge measured undertaking yard center switch intended to empower the advancing needs of a cloud-associated and rich-media-competent foundation. It sets a benchmark for execution, dependability, and versatility with cutting edge Clos structural engineering with 3-microsecond inertness, conveying ultra-high 1/10/40gbe port thickness and is 100gbe-primed. With HP Intelligent Resilient Fabric (IRF) engineering, the HP 10500 Switch Series could be virtualized over four frame with a solitary administration interfaceempowering compliment, more lithe systems. The HP 10512 Switch Chassis - Jc748a gives a fast completely disseminated cutting edge Clos structural engineering with up to 11.52 Tb/s exchanging limit and up to 13.72 Tb/s exchanging fabric ability to meet the requests of data transfer capacity serious requisitions today and later on. The HP 10512 Switch Chassis - Jc748a incorporates a rapid completely dispersed cutting edge Clos structural engineering that improves huge scale exchanging building design, diminishes conceivable issue focuses, and gives more amazing barrier abilities. Ports 2 MPU (for management modules) slots 4 switch fabric slots 12 I/O module slots Supports a maximum of 576 10GbE ports or 576 Gigabit Ethernet ports or 576 SFP ports or 96 40GbE ports, or a combination Memory and processor Management module : Dual Core MIPS @ 1.2 GHz, 512 MB flash, 8 GB DDR2 SDRAM Throughput up to 8.6 Bpps (64-byte packets) Switching capacity 11.5 Tb/s Management features IMC - Intelligent Management Center command-line interface out-of-band management (serial RS-232C) SNMP Manager Telnet terminal interface (serial RS-232C) modem interface IEEE 802.3 Ethernet MIB Ethernet Interface MIB ÷ Minimum dimensions (W x D x H) ÷ 44.0 x 66.0 x 79.7 cm ÷ Weight ÷ 75.4 kg (chassis)
