SpecificationsManufacturer: Hikvision
Manufacturer Part Number: DS-2CD63C5G0-IS 1.29MM
Manufacturer Website Address: http://www.hikvision.com
Brand Name: Hikvision
Product Line: Smart
Product Model: DS-2CD63C5G0-IS

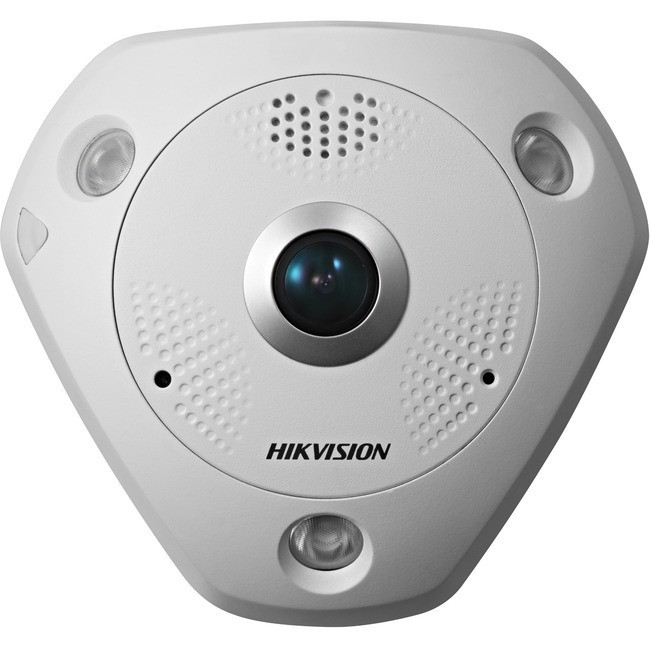

Product Name: 12 MP Network Fisheye Camera
Marketing Information: The Hikvision DS-2CD63C5G0-I(V)S Network Fisheye Camera provides high definition output. It supports H.265+ video compression, which assures savings in bandwidth and storage.
The camera is capable of providing a 360° panoramic image of the surveillance environment, and supports up to 18 live view display modes. These are designed for 3 mount types and 2 decoding modes, and provide a wide range of panoramic display options.
The Fisheye camera is equipped with a 12 MP lens, and has an IR range of up to 50 ft (15 m).
In addition to the standard behavior analysis and exception detection smart features included in the other devices found in this series, these Fisheye cameras support advanced heat map and intersection analysis based on deep-learning technology.
The -V model is designed for outdoor use.
Product Type: Network Camera
Technical InformationHD Recording: Yes
Night Vision Distance: 49.21 ft
Number of IR LEDs: 3
Display & GraphicsImage Sensor Type: CMOS
Color Supported:
Effective Camera Resolution: 12 Megapixel
VideoVideo Formats:
- H.264
- H.265
- H.264+
- H.265+
- MJPEG
Maximum Video Resolution: 4000 x 3000
LensMaximum Focal Length: 1.29 mm
Network & CommunicationConnectivity Technology: Cable
Remote Management: Yes
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsPlacement:
- Table Mount
- Wall Mount
- Ceiling Mount
- Junction Box Mount
- Pendant Mount
Height: 1.8"
Diameter: 6.6"
Weight (Approximate): 3.09 lb
