SpecificationsManufacturer: Hikvision
Manufacturer Part Number: DS-2CD6D24FWD-IZHS
Manufacturer Website Address: http://www.hikvision.com
Brand Name: Hikvision
Product Line: PanoVu
Product Model: DS-2CD6D24FWD-IZHS

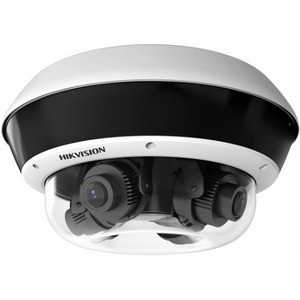

Product Name: PanoVu 8MP Flexible Series Camera
Marketing Information:
Hikvision's DS-2CD6D24FWD-(I)Z(H)(S) 8MP H.265+ EXIR PanoVu Flexible Outdoor Network Camera features 1/2.7" progressive scan CMOS sensorsand four lenses. Each lens supports 1080p at 30fps. Compression up to H.265+ saves bandwidth and storage space. EXIR technology (-I) extendsthe IR range to 98 feet (30 meters).
- Color: 0.006 lux @ (?/1.2, AGC on), 0.01 lux @ (?/1.6, AGC on)
B/W: 0.002 lux @ (?/1.2, AGC on); 0.003 lux @ (?/1.6, AGC on)
0 lux with IR on - 1920 × 1080 @ 30 fps
- Focal Length: 2.8 mm to 12 mm
- Main stream: H.265+/H.265/H.264+/H.264
- 32 Kbps to 16 Mbps
- 33' to 98' (10 m to 30 m)
- 12 VDC ±25%, 12 W
Product Type: Network Camera
Technical InformationHD Recording: Yes
Night Vision Distance: 98 ft
Display & GraphicsImage Sensor Type: CMOS
Color Supported:
Effective Camera Resolution: 8 Megapixel
VideoVideo Formats:
- H.264+
- Motion JPEG
- H.264
- H.265
- H.265+
Maximum Video Resolution: 1920 x 1080
LensMinimum Focal Length: 2.80 mm
Maximum Focal Length: 12 mm
Optical Zoom: 4.2x
Network & CommunicationConnectivity Technology: Cable
Remote Management: Yes
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsPlacement:
- Wall Mount
- Pole Mount
- Pendant Mount
- Corner Mount
Height: 5.7"
Diameter: 11.4"
Weight (Approximate): 10.36 lb
