SpecificationsManufacturer: Hikvision
Manufacturer Part Number: DS-2DE4A404IW-DE
Manufacturer Website Address: http://www.hikvision.com
Brand Name: Hikvision
Product Line: Darkfighter
Product Model: DS-2DE4A404IW-DE

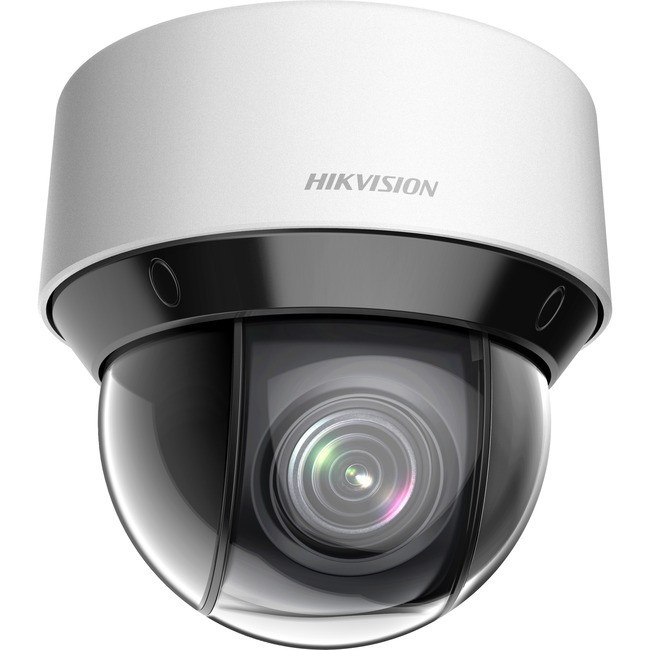

Product Name: 4 MP Indoor/Outdoor 4× Network IR PTZ Camera
Marketing Information:
Hikvision DS-2DE4A404IW-DE Network IR PTZ Cameras produce images with a resolution of up to 2,560 x 1,440 pixels. The embedded 1/1.9" progressive scan CMOS chip supports Digital WDR, and the 4x optical zoom allows for greater detail to be collected over more expansive areas.
-
Minimum Illumination: Color: 0.002 Lux @ (F1.6, AGC ON) B/W: 0.0002 Lux @ (F1.6, AGC ON) 0 Lux with IR
-
Up to 2,560 x 1,440 Resolution
-
H.265+/H.265 Video Compression
-
Main Stream: 50 Hz: 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 50 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
-
IR Distance: 165 ft (50 m)
-
12 VDC/PoE+, 18 W
Product Type: Network Camera
Technical InformationHD Recording: Yes
Night Vision Distance: 164.04 ft
Display & GraphicsImage Sensor Type: CMOS
Color Supported:
Effective Camera Resolution: 4 Megapixel
VideoVideo Formats:
- H.265+
- H.265
- H.264+
- H.264
- MJPEG
Maximum Video Resolution: 2560 x 1440
LensMinimum Focal Length: 2.80 mm
Maximum Focal Length: 12 mm
Optical Zoom: 4x
Network & CommunicationConnectivity Technology: Cable
Remote Management: Yes
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsPlacement:
- Wall Mount
- Corner Mount
- Pole Mount
- Power Box Mount
- Pendant Mount
- Ceiling Mount
- Roof Mount
Form Factor: Dome
Height: 6.3"
Diameter: 6.7"
Weight (Approximate): 5.40 lb
