Specifications

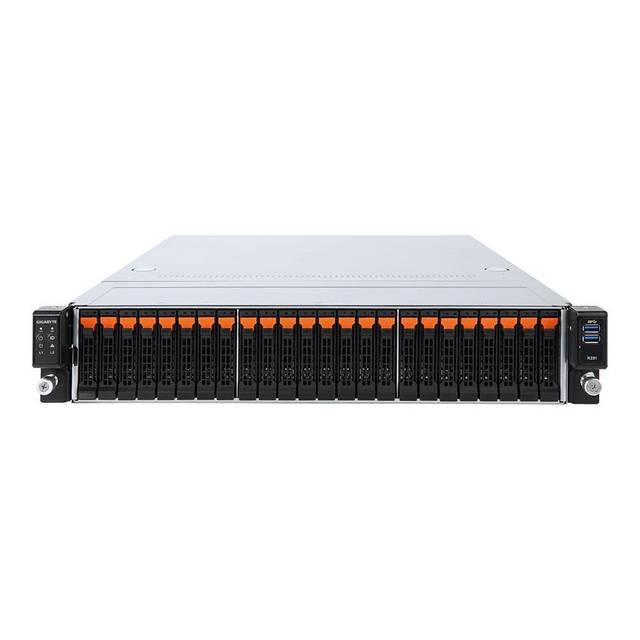

- Mfr Part Number: R281-NO0
- Motherboard: MR91-FS0
- Processor: Dual LGA3647
- Supports Intel Xeon Processor Scalable Family
- Supports Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor and Intel Xeon Bronze Processor
- CPU TDP up to 205W
- Chipset: Intel C621 Express
- Memory: 24x DDR4 - 2666/ 2400/ 2133 MHz DIMM Slots, Six Channel
- Support RDIMM modules up to 64GB
- Support LRDIMM modules up to 64GB
- Slots:
- ​Riser Card CRS2131:
- 1x PCI-Express 3.0 x16 slot (x16 or x8), Full height half-length
- 1x PCI-Express 3.0 x8 slots (x0 or x8), Full height half-length
- 1x PCI-Express 3.0 x8 slots, Full height half-length
- Riser Card CRS2132:
- 1x PCI-Express 3.0 x16 slot (x16 or x8), Full height half-length
- 1 x PCI-Express 3.0 x8 slots (x0 or x8), Full height half-length
- 1 x PCI-Express 3.0 x8 slots, Full height half-length
- Riser Card CRS2124:
- 1x PCI-Express 3.0 x8 slots (x0 or x8), Low profile half-length
- 1x PCI-Express 3.0 x16 slot (x16 or x8), Low profile half-length
- 2x OCP mezzanine slots
- SATA: 1x 7-pin SATA3 Port with SATA DOM supported
- SAS: Supported via add-on SAS Card
- Video: Integrated Aspeed AST2500 Graphics
- LAN: 2x Intel I350-AM2 1Gb/s Gigabit Ethernet Controllersr; 1x 10/100/1000 Management LAN
- Drive Bays: Front side - 24 x 2.5" U.2 hot-swappable HDD/SSD bays; Rear side - 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
- Ports: 4x USB 3.0 Ports (2 rear, 2 front), 1x VGA Port, 2x RJ-45 LAN Ports, 1x Management LAN Port
- Form Factor: 2U Rackmount
- Power Supply: 2x 1600W 80 PLUS Platinum Certified Power Supply
- System Cooling: 4x (80x80x38mm) Fans (14'900rpm)
- Dimensions (WxDxH): 438.0 x 730.0 x 87.5 mm
- Weight: 20.0 kg
