Specifications

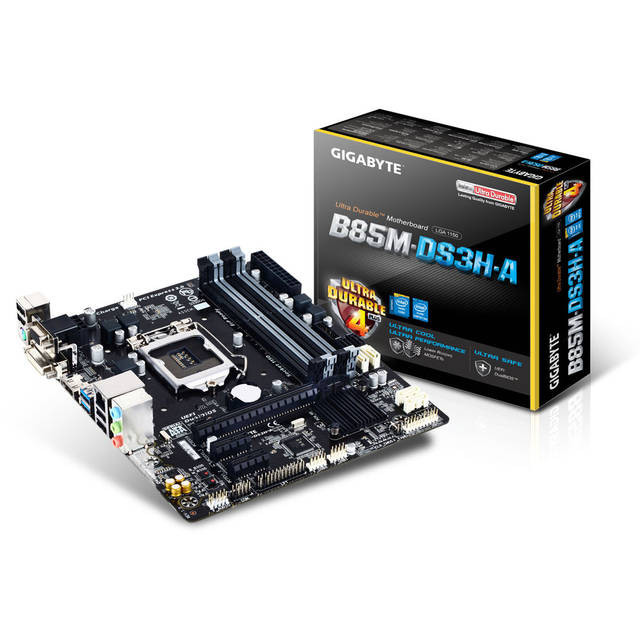

- Mfr Part Number: GA-B85M-DS3H-A
- CPU: LGA1150
- Supports 4th Generation Intel Core i7/ i5/ i3, Pentium, Celeron Processors
- Chipset: Intel B85 Express
- Memory: 4x DDR3-1600/ 1333 DIMM Slots, Dual Channel, Non-ECC, Max Capacity of 32GB
- Slots: 1x PCI-Express3.0 x 16 Slot, 2x PCI Express2.0 x1 Slots
- SATA: 4x SATA3 Ports, 2x SATA2 Ports
- Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
- LAN: Realtek Gigabit Ethernet Controller
- Ports: 4x USB 3.0/2.0 Ports (2 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
- Form Factor: MicroATX, 22.6 x 19.3 cm
