Specifications

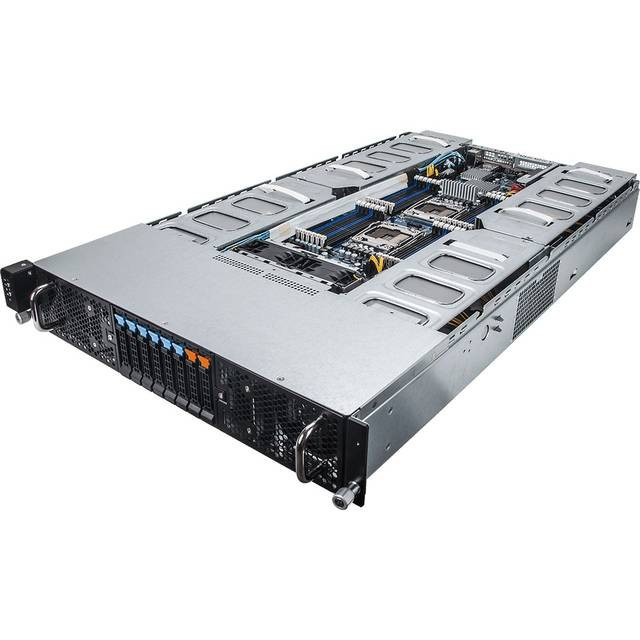

- Mfr Part Number: G25N-G51
- Motherboard: MG50-G20
- Processor: Dual LGA2011-3
- Supports Intel Xeon E5-2600 V3/V4 processors
- Chipset: Intel C612
- Memory: 24x DDR4-2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Quad Channel
- Support RDIMM modules up to 32GB
- Support LRDIMM modules up to 64GB
- Support 3DS LRDIMM modules up to 128GB
- Slots: 8x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x16 Slot (runs at x8, Half-length low-profile), 1x Proprietary PCI-Express 3.0 x8 Slot (mezzanine)
- SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
- SAS: 2x Mini-SAS Port (for 8x SAS 6Gb/s ports)
- Video: Integrated Aspeed AST2400 Graphics
- LAN: 2x Intel 82599ES 10GbE SFP+ LAN Ports; 1x 10/100/1000 Management LAN
- Drive Bays: 2x 2.5" hot-swappable NVMe bays, 6x 2.5" hot-swappable HDD/SSD bays
- Ports: 2x USB 3.0 Ports (rear), 1x VGA Port, 1x Serial Port, 2x SFP+ LAN Ports, 1x RJ45 LAN Port
- Form Factor: 2U Rackmount
- Power Supply: 2x 2000W 80 PLUS Platinum Redundant Power Supply
- System Cooling: 8x (80x80x38mm) Fans (15000rpm)
- Dimensions (WxDxH): 448.0 x 800.0 x 87.5 mm
- Weight: 31.0 kg (full packaging)
