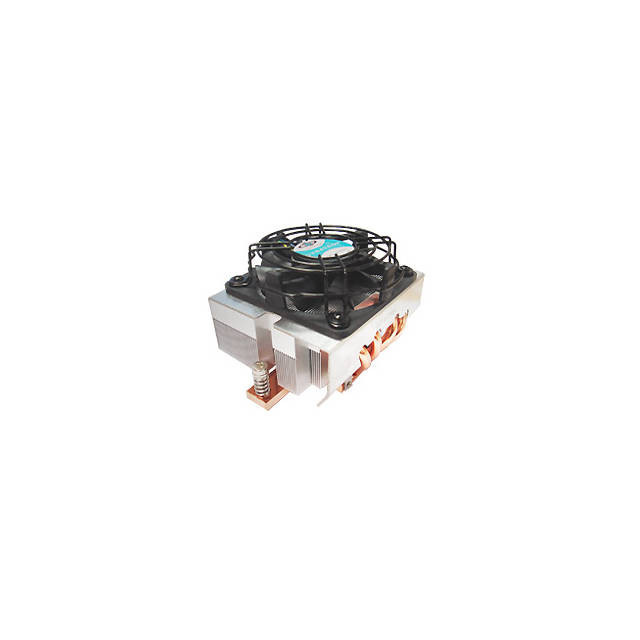

Dynatron A6 2U&Up Server CPU Fan For AMD Socket G34 Opteron 6000 Series

Dynatron A6 2U&Up Server CPU Fan For AMD Socket G34 Opteron 6000 Series

Brand: Dynatron
Part Number #: A6
$175.00
$210.00
(You save $35.00 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Specifications
  • Mfr Part Number: A6
  • CPU Application: 1944-pin Socket G34 support AMD Opteron 6000 Series Processor for 2U Server & Up
  • Heat Sink Material: Copper Base & Aluminum Stacked Fins with Heatpipes embedded
  • Fan:
    • Speed:
      • At Duty Cycle 0~20%: 1000 rpm
      • At Duty Cycle 50%: 2600 RPM
      • At Duty Cycle 100%: 5500 rpm
    • Bearing: 2 Ball Bearing
    • Rated Voltage: 12 V
    • Power:
      • At Duty Cycle 0~20%: 0.54 W
      • At Duty Cycle 50%: 1.68 W
      • At Duty Cycle 100%: 9.0 W
    • Air Flow:
      • At Duty Cycle 0~20%: 8.36 CFM
      • At Duty Cycle 50%: 25.5 CFM
      • At Duty Cycle 100%: 53.9 CFM
    • Noise Level:
      • At Duty Cycle 0~20%: 20.6 dBA
      • At Duty Cycle 50%: 35.1 dBA
      • At Duty Cycle 100%: 51.4 dBA
    • Air Pressure:
      • At Duty Cycle 0~20%: 0.24 mm-H2O
      • At Duty Cycle 50%: 1.25 mm-H2O
      • At Duty Cycle 100%: 5.59 mm-H2O
    • Lead Wire Pin Out:
      • Pin1-Black (-)
      • Pin2-Yellow (+)
      • Pin3-Green (Techometer/Signal output)
      • Pin4-Blue (PWM)
  • Form Factor: 2U&Up Server
  • Dimensions:
    • Fan: 77 x 77 x 20 mm
    • Overall: 114.0 x 75.5 x 66.7 mm
  • Weight: 480g
  • RoHS Compliant
