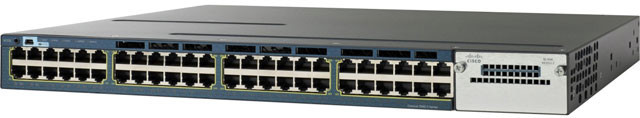

Catalyst 3560X 48 Port UPOE IP Services - WS-C3560X-48U-E

Catalyst 3560X 48 Port UPOE IP Services - WS-C3560X-48U-E

Brand: Managed
Part Number #: WS-C3560X-48U-E
$7,327.13
$8,792.55
(You save $1,465.42 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
Main Specifications:
Device Type Switch - 48 ports - L3 - Managed
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 800 W
Performance Switching fabric bandwidth : 160 Gbps ¦ Forwarding performance : 101.2 Mpps
Capacity Virtual interfaces (VLANs) : 1005 ¦ Switched virtual interfaces (SVIs) : 1000
Jumbo Frame Support 9216 bytes
Routing Protocol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Features Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 49.5 cm x 4.45 cm
Weight 7.6 kg
Manufacturer Warranty Limited lifetime warranty
