Specifications

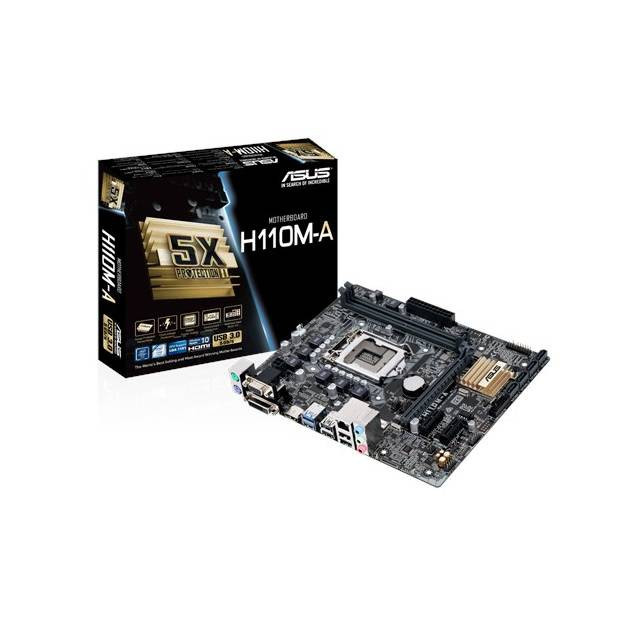

- Mfr Part Number: H110M-A
- CPU: LGA1151
- Supports the 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports Intel 14nm CPU
- Supports Intel Turbo Boost Technology 2.0
- Chipset: Intel H110
- Memory: 2x DDR4-2133 DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 32GB
- Slots: 1x PCI-Express 3.0/2.0 x1 Slot (runs at x16), 2x PCI-Express 2.0 x1 Slots
- SATA: 4x SATA3 Ports
- Audio: Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
- LAN: Realtek RTL8111H Gigabit Ethernet Controller
- Ports: 4x USB 3.0/2.0 Ports (2 rear, 2 at mid-board), 6x USB 2.0/1.1 Ports (4 rear, 2 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24pin EATX Power Connector, 1x 4pin ATX 12V Power Connector
- Form Factor: MicroATX, 8.9 x 7.3 inch / 22.62 x 18.55 cm
