Specifications

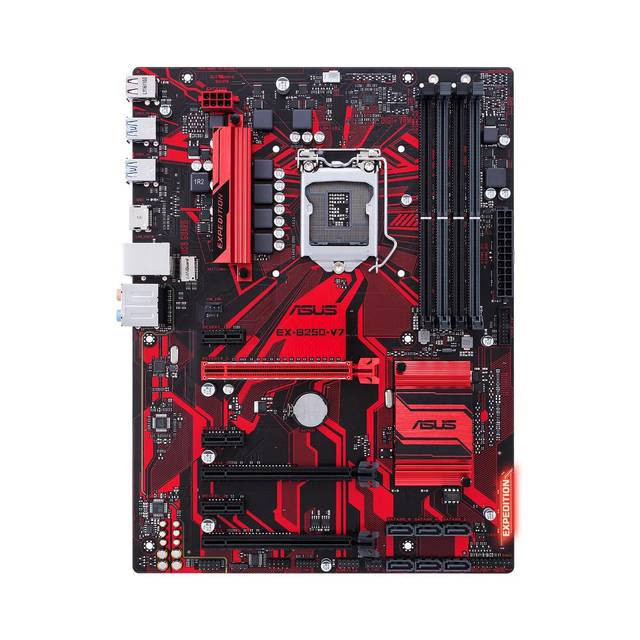

- Mfr Part Number: EX-B250-V7
- CPU: LGA1151
- Supports the 7th/ 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Supports 14nm CPU
- Supports Intel Turbo Boost Technology 2.0
- Chipset: Intel B250
- Memory: 4x DDR4-2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
- Slots: 3x PCI-Express 3.0/2.0 x16 Slots (two run at x4), 3x PCI-Express 3.0/2.0 x1 Slots
- SATA: 6x SATA3 Ports
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- LAN: Intel I219V Gigabit Ethernet Controller
- Ports: 6x USB 3.0/2.0 Ports (4 rear, 2 at mid-board), 6x USB 2.0/1.1 Ports (4 rear, 2 at mid-board), 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24-pin EATX Power Connector, 1x 8-pin ATX 12V Power connector
- Form Factor: ATX, 12 x 9 inch / 30.48 x 22.86 cm
